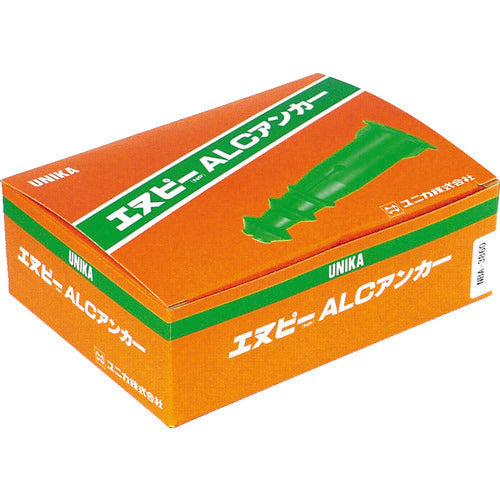

UNIKA ALC Anchor NBA-3860 NBA-3860 30 pieces

Catalog number: NBA-3860 Features: ● A female thread anchor exclusively for ALC panels, boasting strong pulling and holding power. ● Made of special nylon that is weather-resistant, heat-resistant, and rust-resistant. Applications: ● For attaching metal fittings and equipment to ALC panels. Specifications: ● Screw size: W3/8 ● Outer diameter (mm): 14.0 ● Total length (mm): 60 ● Drilling depth (mm): 60 ● Embedded depth (mm): 60 ● Drill diameter (mm): 14.0 ● Maximum tensile load (kN): 2.2 ● Maximum tensile load (kN/kgf): 2.7/280 ● Boxed Material/Finish: ● Special nylon Note: ● Maximum tensile load is based on the compressive strength of an ALC panel 100mm thick, Fc4N/mm squared.
