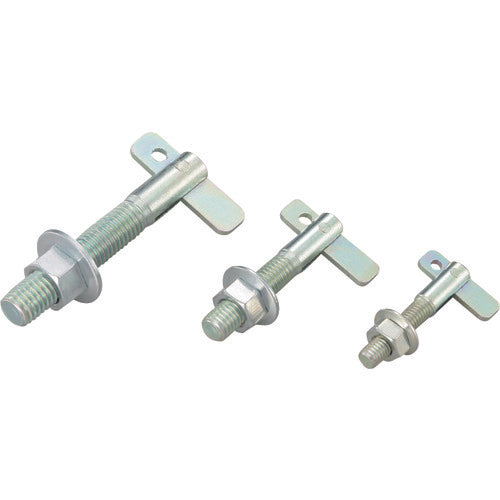

UNIKA T-Lock Stainless Steel TLS Type TLS-1070 TLS-1070 50 Pieces

Catalog number: TLS-1070 Features: ●Since the body diameter and plate width are the same, drilling and anchoring can be done after the equipment is installed. ●Made of all stainless steel, which is resistant to rust, it can be used widely even in humid places. Applications: ●Installation of metal fittings, equipment, handrails, etc. Specifications: ●Screw size: M10 ●Outer diameter (mm): 10.0 ●Total length (mm): 70 ●Screw length (mm): 46 ●Applicable plate thickness (mm): 14-45 ●Drilled hole diameter (mm): 11.0 ●Plate length (mm): 36 ●Tightening plate thickness (mm): 14-45 ●Required hollow section (mm): 38 ●Maximum tensile load (kN): 6.2 ●Length (mm): 70 ●Screw diameter: M10 ●Boxed Material/Finish: ●Stainless steel
