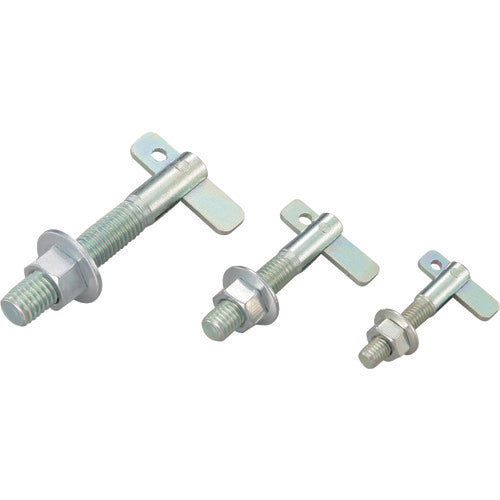

UNIKA T-Lock TL Type TL-1210 TL-1210 30 pieces
UNIKA T-Lock TL Type TL-1210 TL-1210 30 pieces
Regular price
¥8,820
Regular price
Sale price
¥8,820
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalogue number: TL-1210 Features: ●Since the body diameter and plate width are the same, drilling and anchoring can be done after the equipment is installed. Applications: ●For mounting metal fittings, equipment, handrails, etc. Specifications: ●Screw size: M12 ●Outer diameter (mm): 12.0 ●Total length (mm): 100 ●Screw length (mm): 63 ●Applicable plate thickness (mm): 16-70 ●Drilled hole diameter (mm): 13.5 ●Plate length (mm): 37 ●Tightening plate thickness (mm): 16-70 ●Required hollow section (mm): 39 ●Maximum tensile load (kN): 6.8 ●Length (mm): 100 ●Screw diameter: M12 ●Boxed Material/Finish: ●Steel
