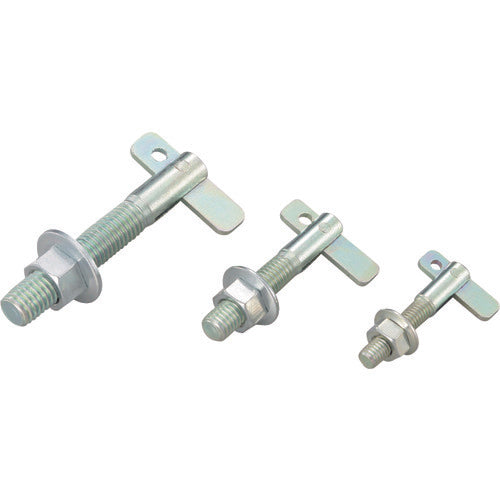

UNIKA T-Lock TL Type TL-630 TL-630 50 pieces

Catalogue number: TL-630 Features: ●Since the body diameter and plate width are the same, drilling and anchoring can be done after the equipment is installed. Applications: ●For mounting metal fittings, equipment, handrails, etc. Specifications: ●Screw size: M6 ●Outer diameter (mm): 7.0 ●Total length (mm): 30 ●Screw length (mm): 13 ●Compatible plate thickness (mm): 10-12 ●Drilled hole diameter (mm): 7.5 ●Plate length (mm): 24 ●Tightening plate thickness (mm): 10-12 ●Required hollow section (mm): 26 ●Maximum tensile load (kN): 3.6 ●Length (mm): 30 ●Screw diameter: M6 ●Boxed Material/Finish: ●Steel
