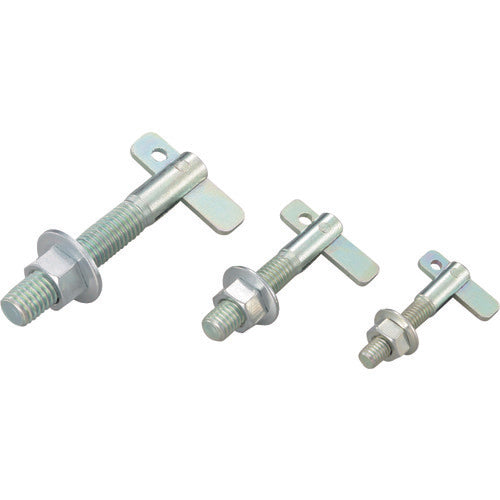

UNIKA T-Lock TL Type TL-840 TL-840 50 pieces

Catalogue number: TL-840 Features: ●Since the body diameter and plate width are the same, drilling and anchoring can be done after the equipment is installed. Applications: ●For mounting metal fittings, equipment, handrails, etc. Specifications: ●Screw size: M8 ●Outer diameter (mm): 8.0 ●Total length (mm): 40 ●Screw length (mm): 20 ●Applicable plate thickness (mm): 12-18 ●Drilled hole diameter (mm): 9.0 ●Plate length (mm): 30 ●Tightening plate thickness (mm): 12-18 ●Required hollow section (mm): 32 ●Maximum tensile load (kN): 4.1 ●Length (mm): 40 ●Screw diameter: M8 ●Boxed Material/Finish: ●Steel
