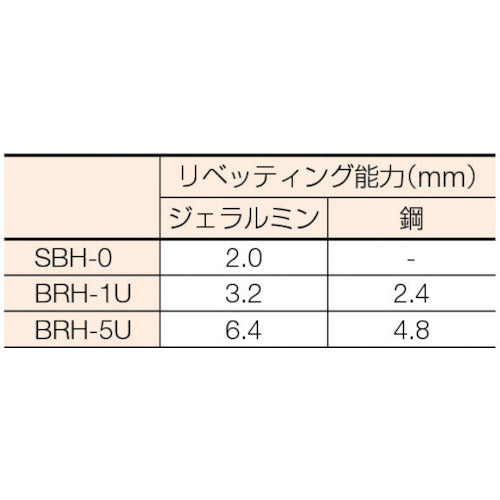

Catalog number: BRH-5U(R) Features: ● Tool for small diameter crimping work. Applications: ● For crimping snaps and driving in pins. Specifications: ● Number of impacts without load (min-1): 1800 ● Air consumption (m3/min): 0.37 ● Chisel insertion port shape: φ10.2 ● Hose attachment port: Rc1/4 ● Total length (mm): 189 ● Inner diameter of air hose used (mm): 9.5 ● Riveting capacity (mm): 6.4 (Jumilan), 4.8 (steel) ● Number of impacts without load (bpm): 1800 ● Air pressure used: 0.6MPa ● Snap insertion is a round type
