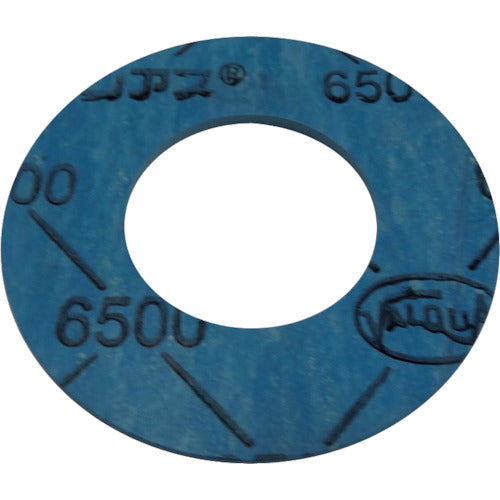

VALQUA Non-asbestos joint sheet gasket, nominal diameter 15A, 6500G-J1S015, 1 sheet

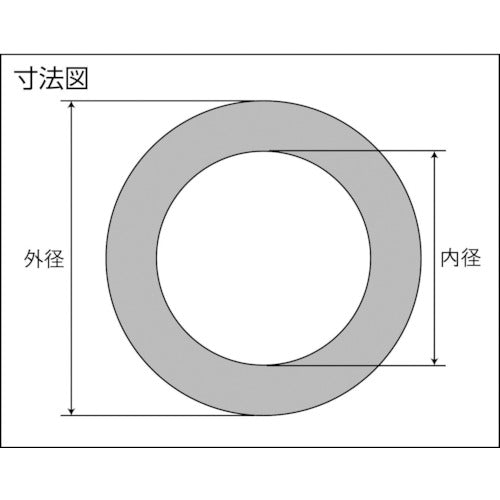

Catalog number: 6500G-J1S015 Features: ● Suitable as gaskets for pipe flanges and equipment in various industries. ● Suitability for water equipment has been confirmed based on JIS S 3200-7. Applications: ● For various industrial pipe flanges, valve bonnets, and various equipment in oil refining, chemical, and ships. Specifications: ● Nominal diameter A: 15 ● Nominal diameter B: 1/2 ● Inner diameter (mm): 22 ● Outer diameter (mm): 58 ● Thickness (mm): 1.5 ● Printed character color: Black ● Operating temperature range (℃): -50 to 183 (Please consult us separately if you use it at 100℃ or more.) ● Operating pressure limit (MPa): 3 (The maximum pressure varies depending on the fluid classification and temperature.) ● JIS standard product ● Color tone: Blue ● Dimensions (mm): 22 x 58 ● Suitability for water equipment has been confirmed based on JIS S 3200-7. ●Usage temperature range: -50 to 183°C Material/Finish: ●Non-asbestos fiber ●Rubber binder Note: ●Please consult us separately if you intend to use at temperatures above 100°C.
