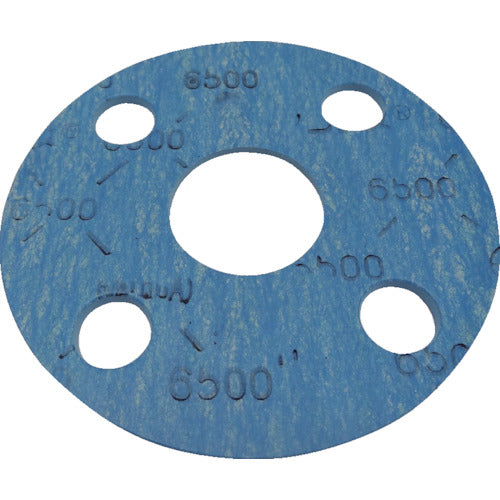

VALQUA Non-asbestos joint sheet gasket, nominal diameter 15A, 6500G-J5S015-FF, 1 sheet

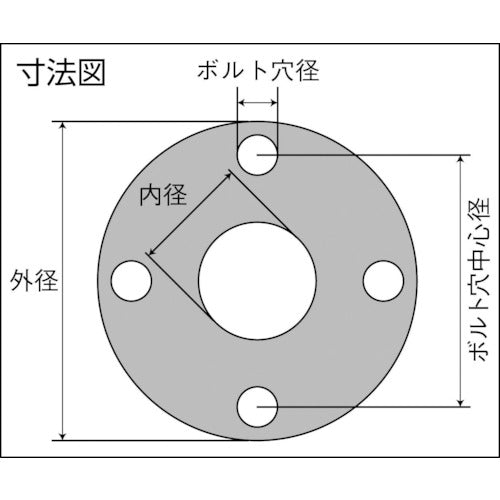

Catalog number: 6500G-J5S015-FF Features: ● Suitable for use as gaskets for pipe flanges and equipment in various industries. ● Suitability for water supply equipment has been confirmed based on JIS S 3200-7. Applications: ● For various industrial pipe flanges, valve bonnets, and various equipment in oil refining, chemical, and ships. Specifications: ● Nominal diameter A: 15 ● Nominal diameter B: 1/2 ● Inner diameter (mm): 22 ● Outer diameter (mm): 80 ● Thickness (mm): 1.5 ● Bolt hole center diameter (mm): 60 ● Number of bolt holes (pcs): 4 ● Bolt hole diameter (mm): 12 ● Dimensions (mm): 22 x 58 ● Color tone: Blue ● Printed character color: Black ● Operating pressure limit (MPa): 3 (Maximum pressure varies depending on fluid classification and temperature.) ● JIS standard product ● Suitability for water supply equipment has been confirmed based on JIS S 3200-7. ●Operating temperature range (℃): -50 to 183●Operating temperature range: -50 to 183℃ Material/Finish: ●Non-asbestos fiber●Rubber binder Note: ●Please consult us separately if you intend to use at temperatures above 100℃.
