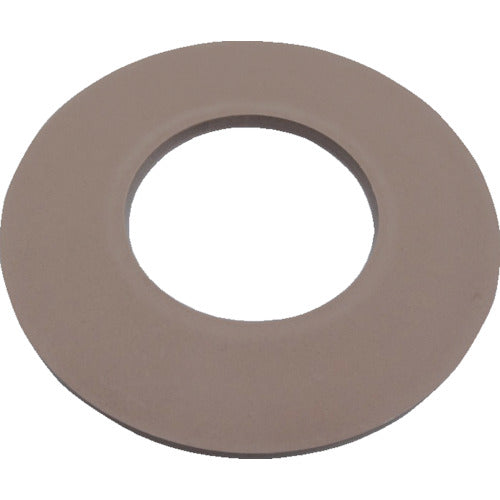

VALQUA Non-Asbestos Joint Sheet Gasket Nominal Diameter 15A V7020G-J1L015 1 sheet

Catalog number: V7020G-J1L015 Features: ●This gasket contains inorganic fillers to improve the cold flow (creep phenomenon) that is a weakness of PTFE. ●PTFE sheet gasket with excellent chemical resistance and non-stickiness. Applications: ●For various industrial piping flanges, valve bonnets, and various equipment such as oil refining, chemicals, and ships. Specifications: ●Nominal diameter A: 15 ●Nominal diameter B: 1/2 ●Inner diameter (mm): 22 ●Outer diameter (mm): 58 ●Thickness (mm): 3.0 ●Operating pressure (K): 10 ●Dimensions (mm): 22 x 58 ●Color tone: Blue ●Printed character color: Black ●Operating pressure limit (MPa): 3 (The maximum pressure varies depending on the fluid classification and temperature.) ●JIS standard product ●Operating temperature range: -200 to 200°C Materials/Finish: ●Fluoroplastic resin (PTFE), silica Note: ●Please consult us separately if you plan to use it at temperatures above 100°C.
