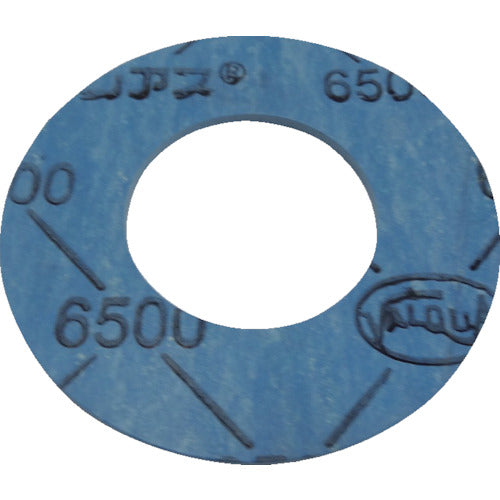

VALQUA Non-Asbestos Joint Sheet Gasket Nominal Diameter 200A 6500G-J5S200 1 sheet

Catalog number: 6500G-J5S200 Features: ● Suitable as gaskets for pipe flanges and equipment in various industries. ● Suitability for water equipment has been confirmed based on JIS S 3200-7. Applications: ● For various industrial pipe flanges, valve bonnets, and various equipment in oil refining, chemical, and ships. Specifications: ● Nominal diameter A: 200 ● Nominal diameter B: 8 ● Inner diameter (mm): 218 ● Outer diameter (mm): 260 ● Thickness (mm): 1.5 ● Dimensions (mm): 218 x 270 ● Color tone: Blue ● Printed character color: Black ● Operating temperature range (℃): -50 to 183 (Please consult us separately if you use it at 100℃ or more.) ● Operating pressure limit (MPa): 3 (The maximum pressure varies depending on the fluid classification and temperature.) ● JIS standard product ● Suitability for water equipment has been confirmed based on JIS S 3200-7. ●Usage temperature range: -50 to 183°C Material/Finish: ●Non-asbestos fiber ●Rubber binder Note: ●Please consult us separately if you intend to use at temperatures above 100°C.
