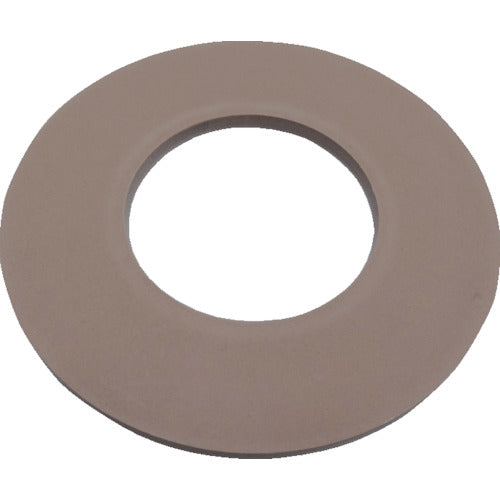

VALQUA Non-asbestos joint sheet gasket, nominal diameter 20A, V7020G-J1S020, 1 sheet

Catalog number: V7020G-J1S020 Features: ●This gasket contains inorganic fillers to improve the cold flow (creep phenomenon) that is a weakness of PTFE. ●PTFE sheet gasket with excellent chemical resistance and non-stickiness. Applications: ●For various industrial piping flanges, valve bonnets, and various equipment such as oil refining, chemicals, and ships. Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: 3/4 ●Inner diameter (mm): 28 ●Outer diameter (mm): 63 ●Thickness (mm): 1.5 ●Operating pressure (K): 10 ●Dimensions (mm): 28 x 63 ●Color tone: Blue ●Printed character color: Black ●Operating pressure limit (MPa): 3 (The maximum pressure varies depending on the fluid classification and temperature.) ●JIS standard product ●Operating temperature range: -200 to 200°C Materials/Finish: ●Fluoropolymer (PTFE), silica Note: ●Please consult us separately if you plan to use it at temperatures above 100°C.
