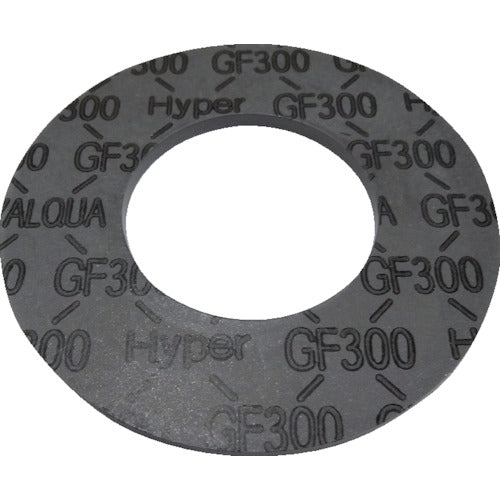

VALQUA Black Hyper Gasket Nominal diameter 125A GF300G-J1S125 1 piece

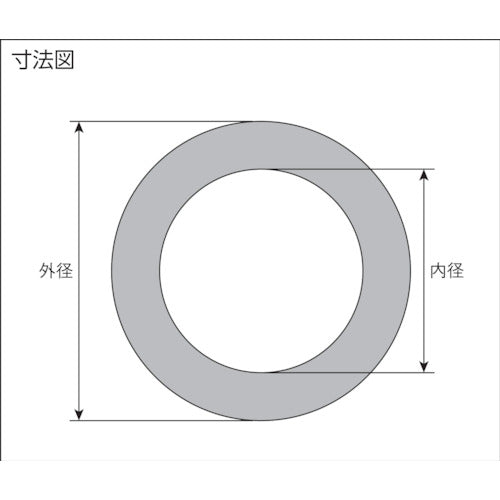

Catalog number: GF300G-J1S125 Features: ●High-performance gasket made mainly of graphite and PTFE, with excellent heat and chemical resistance. ●Consists of only materials with excellent heat resistance and does not contain rubber, so rubber materials do not harden or deteriorate over time due to heat, allowing for retightening. Applications: ●A general-purpose type ideal for utility lines for steam, oil, etc. Specifications: ●Nominal diameter A: 125 ●Nominal diameter B: 5 ●Inner diameter (mm): 141 ●Outer diameter (mm): 190 ●Thickness (mm): 1.5 ●Operating pressure (K): 10 ●Printed character color: Black ●Operating temperature range (℃): -200 to 300 ●Operating pressure limit (MPa): 3 (Maximum pressure varies depending on fluid classification and temperature.) ●Made in an ISO-certified factory ●JIS standard product ●Color tone: Black ●Made in an ISO9001-certified factory ●Operating temperature: -200℃ to 300℃ ●Pressure: Up to 3.5MPa (Maximum pressure varies depending on fluid classification and temperature.) Material/Finish: ●Graphite, fluororesin (PTFE)
