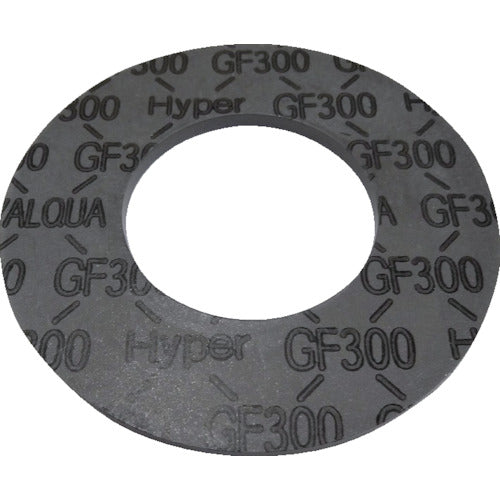

VALQUA Black Hyper Gasket Nominal diameter 32A GF300G-J5L032 1 piece

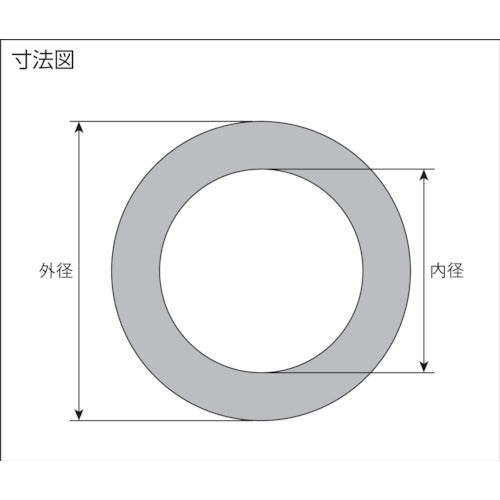

Catalog number: GF300G-J5L032 Features: ●A high-performance gasket made mainly of graphite and PTFE, with excellent heat and chemical resistance. ●It is made only of materials with excellent heat resistance and does not contain rubber, so it can be tightened without hardening or deterioration over time due to heat. Applications: ●A general-purpose type that is ideal for utility lines such as those for steam and oil. Specifications: ●Nominal diameter A: 32 ●Nominal diameter B: 1 1/4 ●Inner diameter (mm): 43 ●Outer diameter (mm): 78 ●Thickness (mm): 3.0 ●Operating pressure (K): 5 ●Printed character color: Black ●Operating temperature range (℃): -200 to 300 ●Operating pressure limit (MPa): 3 (Maximum pressure varies depending on fluid classification and temperature.) ●Made in an ISO-certified factory ●JIS standard product ●Color tone: Black ●Made in an ISO9001-certified factory ●Operating temperature: -200℃ to 300℃ ●Pressure: Up to 3.5MPa (Maximum pressure varies depending on fluid classification and temperature.) Material/Finish: ●Graphite, fluororesin (PTFE)
