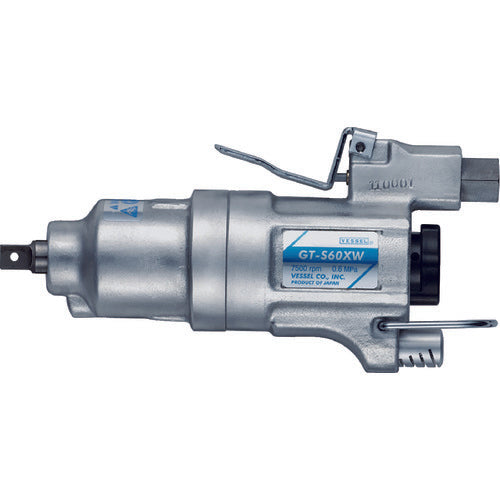

VESSEL Air Impact Wrench GT-S60XW Maximum tightening torque 116.8 GT-S60XW 1 unit

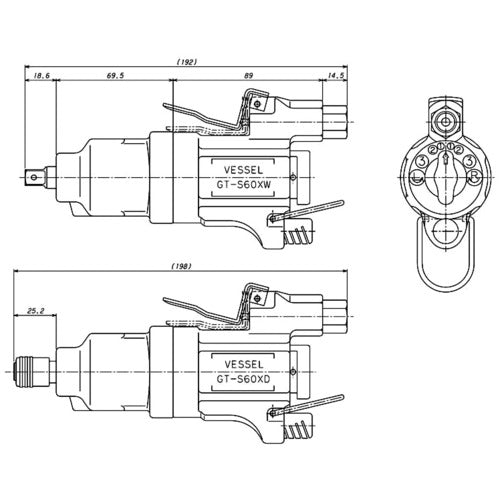

Catalog number: GT-S60XW Features: ●Low vibration achieved by oil lubrication. ●Reduces the harsh hammer impact sound. ●Compact and lightweight type, with a shorter overall length and lighter weight than conventional products. ●No seizure of the hammer part, significantly improving durability. ●2-stage throttle allows slow start. ●Easy to hold vertically or horizontally, and supports screw tightening in all directions. ●Stable screw tightening. ●The bit stops immediately when the lever is released, significantly improving work efficiency. Applications: ●For screw tightening work in the production, assembly, and repair of machinery, steel furniture, automobile parts, housing building materials, etc. ●Due to the oil lubrication effect, there is no free rotation due to inertia, making it ideal for continuous tightening and loosening work. For continuous work on assembly lines where work efficiency is required. Specifications: ● Bolt diameter (mm): 6-8 ● Socket drive size (mm): 9.5 ● Maximum tightening torque (N・m): 116.8 ● No-load speed (min［［の−１］］): 7500 ● Air consumption (［［Ｍ３］］/min): 0.38 ● Hose attachment port: Rc1/4 ● Exhaust: Rear・360° ● Overall length (mm): 192 ● Hammer type: Double hammer ● Air pressure used (MPa): 0.6 ● No-load speed (rpm): 7500 ● Air pressure used: 0.6MPa ● With silencer ● Inner diameter of air hose used: 6.35mm Material/Finish: ● Aluminum Set contents/Accessories: ● Outlet: BPB-2 ● Rotating part hydraulic oil: VG-10 ● Impact part hydraulic oil: VG-32 Note: ● The tightening torque is an approximate value. The torque value will change depending on the conditions.
