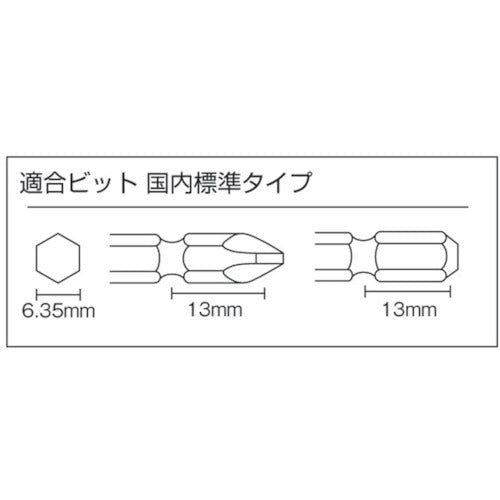

Catalog number: GT-S4TR Features: ● Tightening at a constant torque is possible. ● When the preset torque is reached, the driver automatically shuts off the air and stops rotating at a constant torque. Applications: ● For electronic equipment assembly lines. Specifications: ● Bit insertion port (mm): 6.35 ● Capable screw dimensions (mm): 3.0-4.0 ● Maximum tightening torque (N・m): 2.1 ● No-load speed (min［［の−１力］］): 1100 ● Air consumption (［［Ｍ３］］/min): 0.28 ● Hose attachment port: Rc1/4 ● Exhaust: Rear ● Total length (mm): 215 ● Chuck type: Bit stop ball type ● No-load speed (rpm): 1100 ● Compatible bit: Domestic standard type (13mm) ● Air pressure used: 0.6MPa ● Push start type Caution: ● Tightening torque is an approximate value. Torque value varies depending on conditions.
