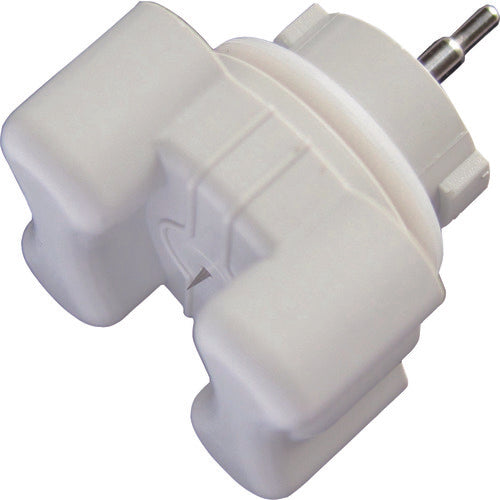

VESSEL Needle Electrode Unit Applicable Model: C-Bar Series C-00HR8 C-00HR8 1 pc

Catalog number: C-00HR8 Features: ●Needle electrode unit. Applications: ●For C-bar series. Specifications: ● Product name: Needle electrode unit ● Compatible models: C-40, C-60, C-90, C-100, C-120, C-150, C-170, C-200 ● Width (mm): 21.6 ● Depth (mm): 21.6 ● Height (mm): 26.5 ● Static electricity removal method: Pulse AC corona discharge type ● Air pressure used (MPa): 0.3 ● Current consumption (mA): 600 ● Power consumption (W): 7.8 ● Power supply (V): DC24 ±5% (connector RJ45) ● Ion balance: ±30V (distance 1000mm) ● Static electricity removal method: Pulse AC corona discharge type ● Ion balance: ±30V (distance 1000mm) ● Ambient temperature during use: 0 to 50°C ● Ambient humidity during use: 35 to 85% RH (but no condensation or freezing) ● Distance used: Approximately 50 to 2000mm ● Ozone generation amount: 0.05ppm or less
