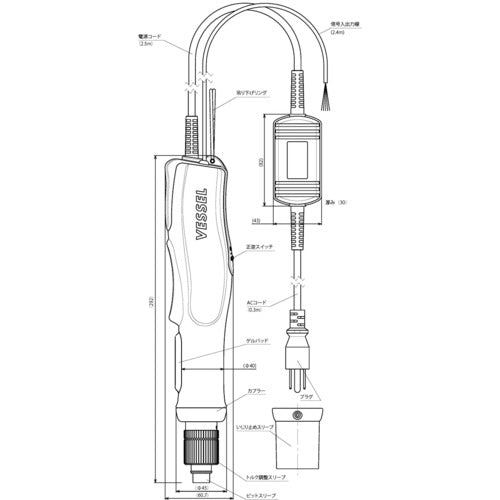

VESSEL Electric screwdriver (high speed, with signal output) VE-5000PSSOP Push Output torque: 0.6 to 2.5 Nm VE-5000PSSOP 1 unit

Catalog number: VE-5000PSSOP Features: ●High-speed type, twice the speed of conventional models, for improved work efficiency. (Compared to VE-5000.) ●Easy-to-use ergonomic design with shock-absorbing gel pad for a firm grip. ●Adopting a slotless brushless motor improves fastening accuracy, efficiency, and maintainability. ●Comes with a tamper-proof sleeve to prevent misoperation during adjustment. ●Comes with a signal take-out wire for three types of output signals (start, torque up, reverse switch) that can be controlled by external devices (PLC), and one type of input signal (electric screwdriver stop). Applications: ●For controlling the simultaneous use of multiple models on assembly lines, linking with peripheral devices, etc. Specifications: Output torque (N・m): 0.6-2.5 Suitable screws (mm) Small screws: M3.0-4.0 Power supply (V): AC type Power cord length (m): 2.5 No-load rotation speed (min-1): 2000 Suitable screws (mm) Tapping screws: 2.6-3.5 Power consumption (W): 150 Total length (mm): 290 Bit face size (mm): 6.35 Push type, with signal output Torque adjustment ring: 16 levels x 8 scales PSE standard Material/Finish: PC + Elastomer Set contents/Accessories: Hanging ring: 1 piece Tamper-proof sleeve: 1 piece Set screws (M3×3): 2 pieces Hexagonal wrench (H1.5): 1 piece 3P2P conversion adapter: 1 piece Instruction manual Included bits: M-A14+2×65H…2 pieces Caution: ●Do not use devices other than PLCs to connect to the signal output line. ●Do not directly connect the + side of a power supply to the signal output line. ●Do not directly connect and drive relays, motors, lamps, etc. to the signal output line. ●Use the signal input line at DC24±10%.
