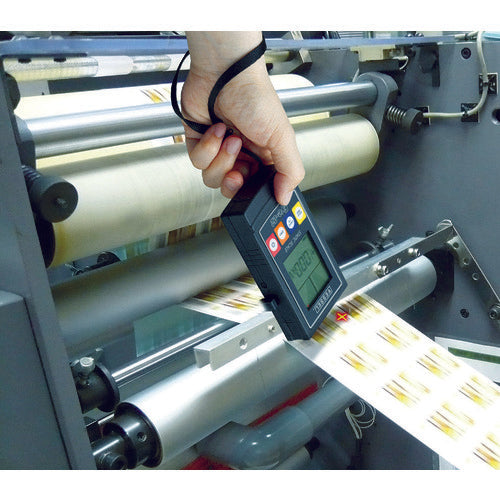

VESSEL static electricity measuring instrument No. EYE-02 EYE-02 1 unit

Catalogue number: EYE-02 Features: ● Compact static electricity measuring instrument capable of measuring ion balance and charged potential. ● Equipped with a "maximum (peak) value display" function that is convenient for charging "workpieces moving at high speeds" where the numerical value is difficult to determine, and for "continuous measurement". ● Cross mark LED function makes it easier to see the measurement distance. ● The large, easy-to-read LCD screen displays the measured potential as a bar graph and numerical value. ● Equipped with a backlight, making it easy to measure in dark places. ● Measurements can be made with a tripod attached. Applications: ● Charged potential measurement. ● Ion balance measurement. Specifications: ● Measurement range (kV): 0 to ±1.50 (LO range), ±1.0 to ±22.0 (HI range) ● Measurement distance (mm): 25 ● Measurement accuracy: ±10% (Indication value sampling speed 5 times/sec) ● Power supply (V): 1 x 9V type (006P) square dry battery (sold separately) ● Width (mm): 70 ● Depth (mm): 25 ● Height (mm): 123 ● Power supply: 1 x 9V type (006P) square dry battery (sold separately) ● Charged potential measurement distance: 25mm ±0.5mm ● Response speed: Within 1 second ● Length x width x thickness: L123 x W70 x D25mm ● Weight: 170g / 30g for ion balance measurement plate ● Operating temperature / humidity: 0℃ to 50℃ 80% RH or less ● CE RoHS Material / Finish: ● Case material: Conductive ABS resin ● Ion balance plate: Stainless steel Set contents/accessories: Ion balance measurement plate, earth cord, alligator clip, strap, soft case
