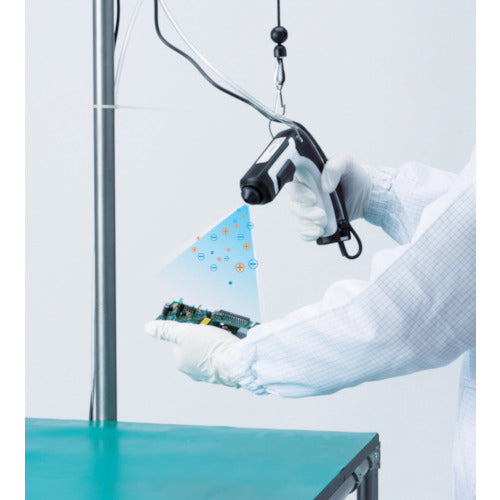

VESSEL static electricity removal ion air gun Orca No. G-2 G-2 1 unit

Catalogue number: G-2 Features: ● Efficiently generates ions with a built-in high-frequency piezoelectric transformer. ● The grip has a groove for fitting wiring, which is convenient when hanging it from a cell stand. ● Made of small, lightweight, and shatter-resistant polycarbonate. ● Soft grip that is non-slip and easy to hold. ● An operation lamp is located on the top of the grip, so you can check the operating status at a glance. Applications: ● For blowing away stubborn dust caused by electrostatic charge, and for removing static electricity to prevent dust from adhering. Specifications: ● Power supply (V): DC24V ±5%, AC100-240●Power consumption (mA): 100●Air pressure used (MPa): 0.1-0.6●Width (mm): 148●Depth (mm): 44●Height (mm): 157●Static charge removal method: Piezoelectric high-frequency AC corona discharge type●Operating temperature (℃): 5-40●Operating humidity (%RH): 35-65●Current consumption (mA): 100●Static charge removal method: Piezoelectric high-frequency AC corona discharge type●Applied voltage: AC4.5kV●Amount of ozone generated: 0.05p pm or less (measurement distance 50 mm) ● Abnormality warning: High voltage abnormal output stopped (red LED) ● Protection function: Current fuse (0.5 A on the board) ● Operating temperature and humidity: 5 to 40°C, 35 to 65% RH (but no condensation or freezing) ● Storage temperature and humidity: 0 to 60°C, 35 to 85% RH (but no condensation or freezing) ● Operating distance: 50 to 300 mm (Installation location: Indoor non-hazardous location) ● Static electricity removal time: 0.8 seconds or less (0.3 MPa, measurement distance 300mm) ●Ion balance: Within ±10V ●Air hose: Outer diameter φ6mm, inner diameter φ4mm Material/Finish: ●Body: Flame-retardant polycarbonate, flame-retardant elastomer ●Hook: Stainless steel ●Needle electrode: Tungsten Set contents/Accessories: ●Power adapter No. AD24-ITCS ●AC input cable (1.8m) ●Standard nozzle (already installed) ●Screwdriver for replacing needle electrode Note: ●Measured values ​​are measured according to our measurement environment and errors may occur depending on the usage environment.
