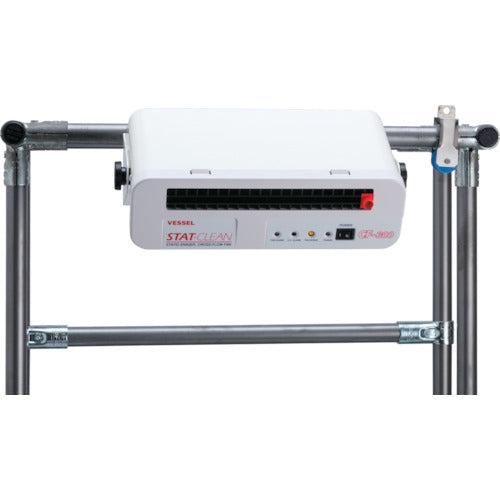

VESSEL Static Electricity Removal Cross Flow Fan No. CF-300 CF-300 1 unit

Catalog number: CF-300 Features: ●Ion balance within ±10V achieved by piezoelectric transformer and capacitively coupled needle electrode. ●Equipped with a cross-flow fan, it delivers ions with a wide, uniform wind, achieving excellent static elimination performance. ●Air volume can be adjusted steplessly. ●Includes electrode cleaning brush. ●A sliding cleaning brush is attached to the front cover, so the needle electrode can be maintained at any time. ●Safe design equipped with monitoring function for abnormal stop of fan motor and stop of high voltage output. Applications: ●For static elimination in wide areas such as workbenches, belt conveyor lines, and cell production lines. Specifications: ● Power supply (V): DC24 Ripple (pp) ±10% or less ● Ion balance: Within ±10V ● Maximum air volume (［［M3］］/min): 2.5 ● Ozone generation: 0.05ppm or less ● Width (mm): 348 ● Depth (mm): 165 ● Height (mm): 157 ● De-ionization method: AC high-frequency corona discharge type ● Filter: Rough filter ● Ambient humidity during use (%): 35 to 65% RH (but no freezing or condensation) ● Ambient temperature during use (℃): 5 to 40℃ (but no freezing or condensation) ● De-ionization time: 1.5 seconds or less (300mm in front) Maximum airflow) ● Protection functions: Fan motor rotation monitoring function (lock detection), high voltage output shutdown function (overload detection), power fuse 3.15A ● Installation location: Indoors ● Maximum current consumption (mA): 500 ● Static electricity removal method: AC corona discharge type ● Current consumption: 500mA (max) ● Airflow: 2.5 [m3] / min Maximum airflow (according to fan specifications) ● Usage distance: 150-900mm ● Usage temperature and humidity: 5-40°C 35-65% RH (but no freezing or condensation) ● Noise: 52.5dBA (distance of 1m) ● Cleaning brush included ● Abnormality warning: Red LED when high voltage abnormality (HV ALARM), red LED when FAN locked (FAN ALARM) Material / Finish: ● Main unit: SPCC ● Main unit / stand: SPCC ● Front cover: Flame-retardant ABS resin ● Discharge needle: Stainless steel (SUS304) Set contents / Accessories: ● Power adapter No. AD24-IT / AC Input cable 1.8m, cleaning brush x 1 Replacement parts: cleaning brush No. CF-300B, rough filter No. CF-300F Note: Measurements are based on our measurement environment and may vary depending on the usage environment. Please read the instruction manual carefully to use the product safely. Be careful of condensation. It may cause electric shock or breakdown. Never use in areas requiring explosion-proof construction. High voltage is applied to the discharge needle, so keep it away from metal objects such as tools and wires, fingers, hands, and face.
