VESSEL Static Electricity Removal Super Slim Nozzle No. N-1 N-1 1 unit

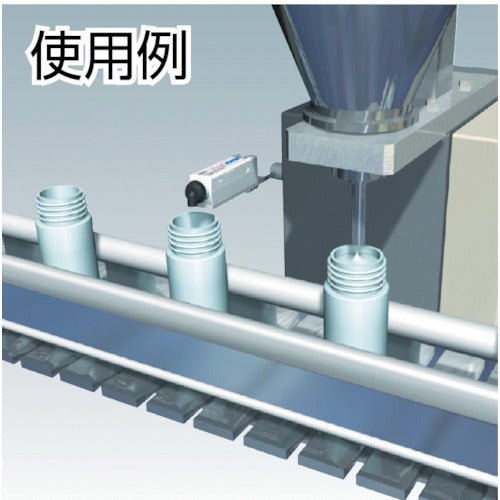

Catalog number: N-1 Features: ● Ultra-compact, slim-body nozzle-type ionizer. ● Ideal for installation in tight spaces. ● Equipped with a 6-pole terminal that can extract high-voltage abnormality signals and cross-wire DC24V power. Applications: ● For preventing liquid stains during filling work, installation on chuck boards, and for preventing parts feeder malfunctions. Specifications: ● Power supply (V): DC24 ± 5% Ripple (PP) 10% or less ● Power consumption (mA): 100 ● Air pressure (MPa): 0.1 to 0.6 ● Width (mm): 109.6 ● Depth (mm): 27.5 ● Height (mm): 28 ● Static electricity removal method: Piezoelectric high-frequency AC corona discharge type ● Operating temperature (℃): 5 to 40 ● Operating humidity (% RH): 35 to 65 ● Current consumption (mA): 100 ● Ion balance: ± 10V (with standard nozzle, 0.3MPa, distance 150mm) ● Static electricity removal method: Piezoelectric high-frequency AC corona discharge type ● Operating environment temperature: 5 to 40℃ ● Operating environment humidity: 35 to 65% RH (but no condensation or freezing) ● Ion balance: ± 10V (with standard nozzle, 0.3MPa, distance 150mm) ● Ozone generation amount: 0.05ppm or less (0.2MPa, measurement distance 50mm) Set contents/accessories: Standard nozzle (installed)
