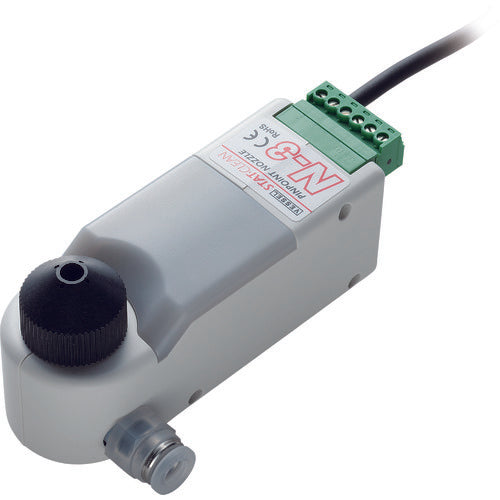

VESSEL Static electricity removal pinpoint nozzle N-3 N-3 1 unit

Catalog number: N-3 Features: ●An ultra-compact, lightweight pinpoint nozzle with a compact high-voltage power supply. ●Compressed air is used to remove static electricity and dust with the powerful force of the wind. ●Uses a high-voltage winding transformer with stable output to generate abundant ions. ●A signal of abnormal operation can be output externally, so operation can be checked from a distance. ●Multiple units can be connected in a daisy chain to supply power. ●Since it is an AC corona discharge type, there is no disruption of the ion balance due to dirt on the needle. Applications: ●For removing static electricity and dust from electronic devices and glass substrates. ●For the static elimination process of lens units, CDs, DVDs, wafers, etc. ●For preventing film static electricity in food packaging machines. Specifications: ● Power supply (V): DC24V ±5% ● Power consumption (mA): 90 ● Air pressure used (MPa): 0.1 to 0.6 ● Width (mm): 50 ● Depth (mm): 48 ● Height (mm): 95 ● Static electricity removal method: Piezoelectric AC corona discharge type (37kHz) ● Operating temperature (℃): 5 to 40 ● Operating humidity (%RH): 35 to 65 ● Power supply voltage (V): DC24 ±5% ● Ion balance: ±10V or less (at time of shipment) ● Output voltage (kV): AC5.6 ● Current consumption (mA): 90 ● Current consumption: 90mA max. ● Static electricity removal method: AC high frequency corona discharge type (37kHz) ● Current fuse: 0.5A/600V ● Operation indication: During operation (green LED) During abnormal stop (red LED) ● Connector: 6-pole type Omron XW4A-06B1-H1●Ion balance: ±10V or less (at time of shipment)●Ozone generation: 0.05ppm or less●Operating temperature/humidity: 5-40°C 35-65%●Storage temperature/humidity: 0-60°C 35-85%●CE: Compliant with EC directives (EMC directive/RoHS directive) Material/Finish:●Case: Resin (ABS)●Discharge needle: Tungsten●Nozzle: ABS Set contents/Accessories:●Standard nozzle (already installed)●Power harness (6 lead wires, 700mm) Note:●RoHs, CE compliant
