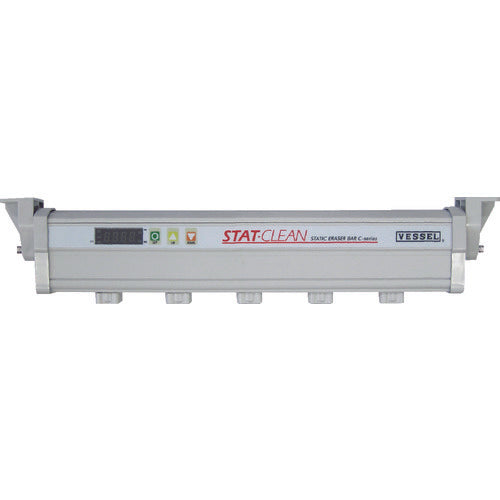

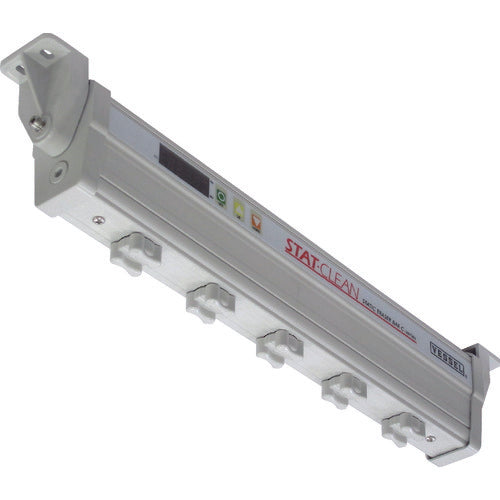

VESSEL Static electricity removal AC pulse clean bar No. C-40 C-40 1 unit

Catalog number: C-40 Features: ●In addition to the ultra-compact design, more stable static elimination has been achieved. ●With a high voltage abnormality alarm. ●External signal output is possible. ●Power supply terminals and signal terminals are concentrated on one side, making wiring easier. ●Short type, ideal for installation on conveyors or inside equipment. ●Output voltage and ion balance can be adjusted. ●A newly designed nozzle that improves static elimination performance while reducing air consumption. Applications: ●Cleanroom ceilings, glass in the painting process for automobile parts, conveying circuit boards, etc. ●For preventing static electricity destruction and charging, and dust adhesion of electronic parts, electronic assembly, resin molding, packaging containers, etc. ●For preventing static electricity destruction and charging, and dust adhesion of electronic parts, electronic assembly, resin molding, packaging containers, etc. Specifications: ● Power supply (V): DC24 ±5% [RJ45 connector] ● Power consumption (mA): 325 ● Air pressure used (MPa): 0.3 ● Power consumption (W): 7.8 max. ● Width (mm): 422 ● Depth (mm): 46 ● Height (mm): 90 ● Static electricity removal method: Pulse AC corona discharge type ● Input power supply (V): DC24 ±5% (RJ45 connector) ● Ion generation method: Pulse AC corona discharge type ● Frequency: 0.1, 0.3, 1, 3, 5, 8, 10, 20, 30, 50Hz ● Pulse ratio: Positive 40 to 70%, adjustable in 0.5% increments ● Alarm output: High voltage abnormality ● Environmental temperature, humidity: 0 to 50°C 35 to 85% RH (but no condensation or freezing) ● Rohs, CE compliant ● Ion balance: ±30V (distance 1000mm) ● Output voltage (kV): 7.8W max●Current consumption (mA): max 600●Static charge removal method: Pulse AC corona discharge type●Ion balance: ±30V (distance 1000mm)●Ambient temperature during use: 0 to 50℃●Ambient humidity during use: 35 to 85%RH (but no condensation or freezing)●Usage distance: Approximately 50 to 2000mm●Ozone generation amount: 0.05ppm or less●Air connection: PT1/8 hose outer diameter 8mm x inner diameter 6mm●Air supply: Clean dry air or nitrogen gas (0.3MPa or less)●Adjustment function Applied voltage: Can be set in 10 steps from 8.0 to 12.5kVp-p Material/Finish:●Body: Flame-retardant ABS resin●Discharge needle: Tungsten Set contents/Accessories:●Power cable (10m) 1 piece●Interface cable (10m) 1 piece●End bracket
