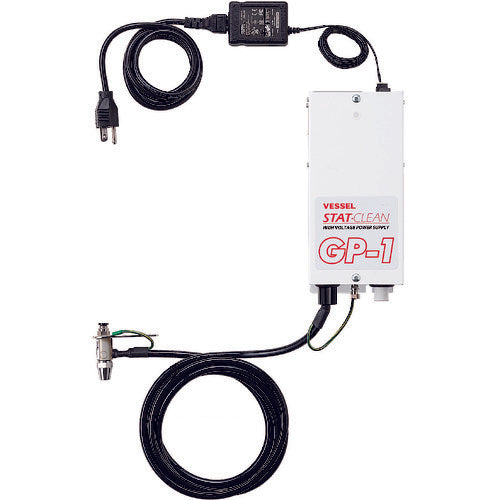

VESSEL High Voltage Power Supply Unit No. GP-1 4kV GP-1 4KV 1 unit

Catalog number: GP-1 4KV Features: ●High voltage unit for the static electricity removal Hyper series. ●An abnormality detection circuit detects high voltage abnormalities. ●The ion balance can be easily adjusted with the adjustment volume. Specifications: ●Power supply (V): DC24±10% ●Width (mm): 102.8 ●Depth (mm): 114.2 ●Height (mm): 233.5 ●Operating temperature/humidity: 0 to 50°C/10 to 90% RH (no freezing or condensation) ●Storage temperature/humidity: -30 to 70°C/10 to 90% RH (no freezing or condensation) ●Rated input voltage: DC24V±10% ●Output variable range at no load (rms): AC output 4kV/DC output -150 to +550V●Secondary short circuit current: 5mA or less●Output monitor: 1/1000V±5% of the output voltage is output to the monitor terminal●Low voltage detection: When the output voltage falls below approximately 85% of each output setting voltage due to high voltage shortening or abnormal spark generation, etc., an abnormality detection operation is performed●Power input connector: Molex 5569-04A1-210●High voltage output connector: Ceramic high voltage output terminal (2 pieces)●Alarm output terminal: C contact relay output Material/Finish:●Housing: SPCC, white paint Caution:●Please read the instruction manual carefully to use the product safely. ●Be careful of condensation. It may cause electric shock or malfunction. ●Never use in areas requiring explosion-proof construction. ●The discharge needle is applied with high voltage, so do not bring it close to tools, metals such as wire, fingers, hands, or face. ●This product applies high voltage, so do not expose it to water, oil, solvents, etc.
