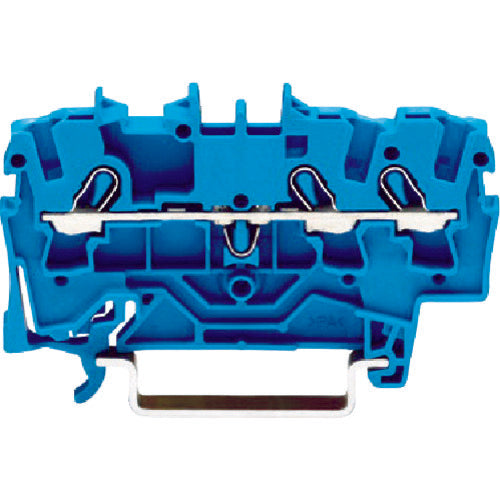

WAGO Spring Type Relay Terminal Block for 2002 Series 3-Wire Type, Blue, 2002-1304-PK, 1 Piece

Catalog number: 2002-1304-PK Features: ● Spring-type terminal block saves labor and space, and does not loosen or require retightening. ● Solid wires and stranded wires with ferrules can be connected simply by inserting the wires. Applications: ● For connecting wires inside control panels and relay boxes. Specifications: ● Color: Blue ● Length (mm): 5.2 ● Width (mm): 59.5 ● Height (mm): 33.0 ● Type: For spring-type relays ● Rating: 800V24A ● Number of connected wires: 3 ● Wire size: 0.25 to 2.5mm [squared] ● Terminal thickness (mm): 5.2 ● Wire strip length (mm): 10 to 12 ● 3-wire type Material/Finish: ● Nylon 66 ● Copper ● Stainless steel
