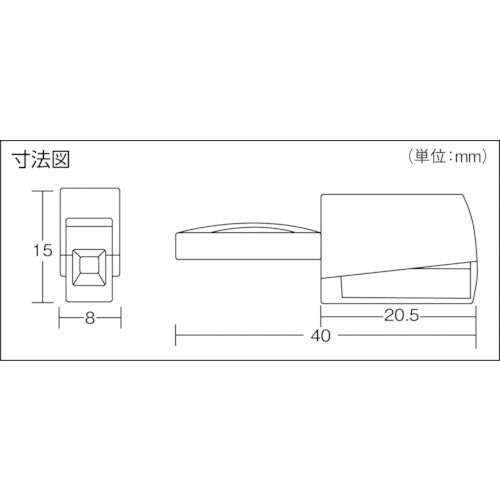

Catalog number: 215-511-PK Features: ●Can connect 0.08 to 2.5 mm squared wires with one touch and can be used repeatedly. ●No soldering required. ●Can be easily converted into banana plugs by simply stripping the wire coating, making it convenient for testing purposes. ●Available in 9 colors for easy identification. Applications: ●For φ4 mm sockets. Specifications: ●Wire clamping range solid wire (mm): 0.4 to 1.6 ●Wire clamping range stranded wire (mm2): 0.08 to 2.5 ●Wire clamping range AWG: 28-14 ●Color: Yellow ●F (mm): 20.5 ●Depth (mm): 8 ●Height (mm): 15 ●Total length (mm): 40 ●Wire stripping length (mm): 9 to 11 ●Rating: 42V-20A Material/Finish: ●66 Nylon
