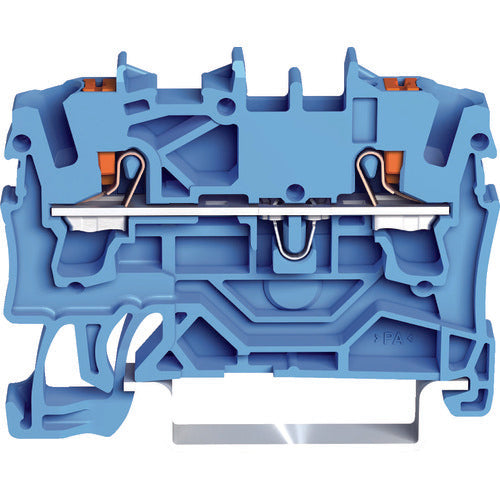

WAGO Push Button Operation Type Spring Type Junction Terminal Block 2202 Series 2-Wire Type 2202-1204-PK 1 Piece

Catalog number: 2202-1204-PK Features: ● Spring-type terminal block reduces labor and space, does not loosen and does not require retightening, and has a push button for easy wiring. ● Solid wires and stranded wires with ferrules can be connected simply by inserting the wires. Applications: ● For connecting wires inside control panels and relay boxes. Specifications: Color: Blue; Button color: Orange; Length (mm): 5.2; Width (mm): 48.5; Height (mm): 33.0; Type: For spring-type relays; Rating: 800V24A; Compatible with: Wire size: 0.25-2.5mm [squared]; Compatible models: Wire size: 0.25-2.5mm [squared]; Number of connected wires: 2; Wire size: 0.25-2.5 mm2; Terminal thickness (mm): 5.2; Wire stripping length (mm): 10-12; Material/Finish: 66 nylon; Copper; Stainless steel
