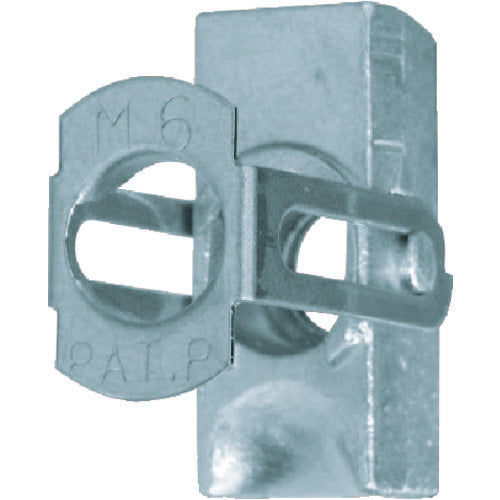

WAKAI Turn Nut TN5 TN5 100 pcs

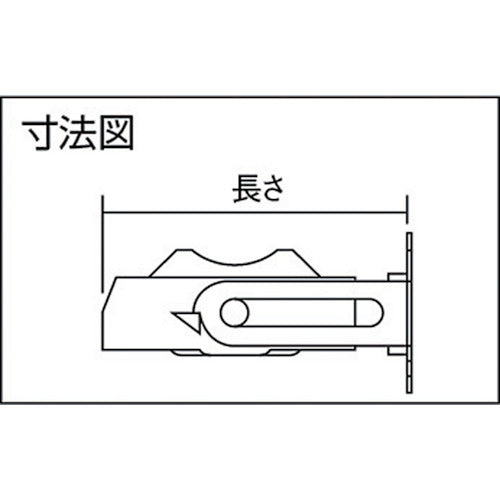

Catalogue number: TN5 Features: ● Flange and nut combined. ● The nut can be inserted from the surface even in places that are difficult to reach. Applications: ● Facility construction, carpentry, plumbing, electrical work. Specifications: ● Total length (mm): 19.5 ● Suitable plate thickness (mm): 0.5-3.0 ● Pilot hole diameter (mm): 9.2 (drill) ● Suitable screw diameter: M5 ● Nut length (mm): 15.5 ● Length (mm): 19.5 ● Breaking torque (kN): 0.59 ● Pilot hole diameter (mm): 9.0 (press) ● Flange H (mm): 11.0 ● Applicable plate thickness: 0.5-3.0mm Material/Finish: ● Nut part: Zinc ● Flange part: Stainless steel (SUS304)
