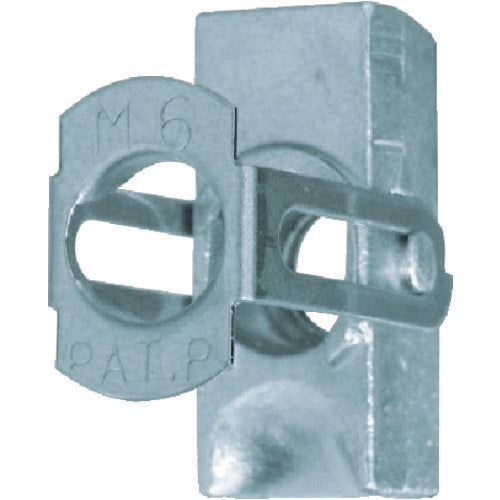

WAKAI Turn Nut TN6 TN6 100 pcs

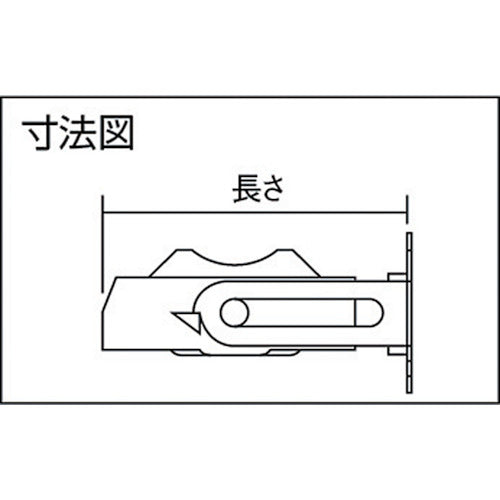

Catalogue number: TN6 Features: ● Flange and nut combined. ● The nut can be inserted from the surface even in places that are difficult to reach. Applications: ● Facility construction, carpentry, plumbing, electrical work. Specifications: ● Total length (mm): 23.0 ● Suitable plate thickness (mm): 0.5-3.0 ● Pilot hole diameter (mm): 10.2 (drill) ● Suitable screw diameter: M6 ● Nut length (mm): 19.0 ● Length (mm): 23.0 ● Breaking torque (kN): 0.98 ● Pilot hole diameter (mm): 12.0 (press) ● Applicable plate thickness: 0.5-3.0mm Material/Finish: ● Nut part: Zinc ● Flange part: Stainless steel (SUS304)
