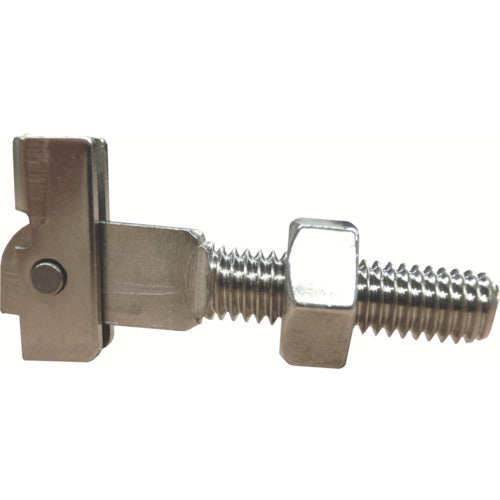

WAKAI SUS Mecha Bolt 3045 MB3045S 10 pieces

Catalogue number: MB3045S Features: ●Can be installed in hollow spaces of 26 mm or more. ●Can also be used in narrow hollow spaces with a small torque. ●Has an eccentric structure that is resistant to torque deformation and uses reinforced rotating pins, resulting in a structure with excellent durability. Applications: ●Carpentry, sheet metal, electrical work, piping work. ●For ALC and hollow building materials. (Plate thickness 10mm or more) Specifications: ●Screw designation: W3/8 ●Screw length (mm): 32.5 ●Compatible plate thickness (mm): 10-65 ●Pre-drilled hole diameter (mm): 13 ●Plate length (mm): 27 ●Fastening plate thickness (mm): 10-65 ●Required hollow section (mm): 26 ●Maximum tensile load (kN): 3.45 ●Length (mm): 45 ●Bolt diameter (mm): 3/8 ●Load: 7840N ●Commercially available 3-minute bolts and flanged feet can be used Material/Finish: ●Stainless steel (SUS304) Set contents/Accessories: ●Nut ●Washer Caution: ●The plate thickness at the installation location must be 10mm or more.
