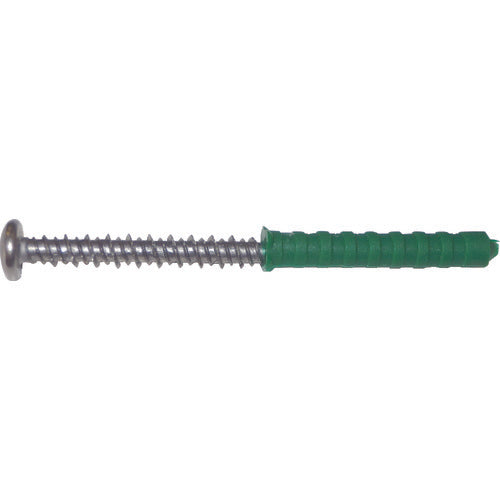

WAKAI VPSUS Henshin Truss 6X30 (60 pieces) ST630 1 PK

Catalog number: ST630 Features: ●The screw and plug are in close contact with the mating material, providing a strong fastening feeling. ●Can be used for both hollow and non-hollow materials. ●Can also be used for mortar and blocks. ●The screw and plug combine to provide a strong fastening feeling. Applications: ●For concrete, mortar, blocks, extruded cement boards, and ceramic siding bases. Specifications: ●Outer diameter (mm): 6 ●Length (mm): 30 ●Maximum mounting thickness (mm): 5 ●Drilling depth (mm): 40 ●Maximum tensile load (kN): 2.13 ●Pilot hole diameter (mm): 6 ●Screw length (mm): 30 ●Head shape: Truss ●Finish: Stainless steel ●Head shape: Truss ●Head shape: Truss Material/Finish: ●Body: Nylon ●Screw: Stainless steel (SUS410) Note: ●The maximum tensile load is the value when the concrete strength is Fc26N/m［［Ｍ２］］.
