YAHATA Plate Nut W3/8 YHI-ITNT-W3/8 1 pc
YAHATA Plate Nut W3/8 YHI-ITNT-W3/8 1 pc
Regular price
¥192
Regular price
Sale price
¥192
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

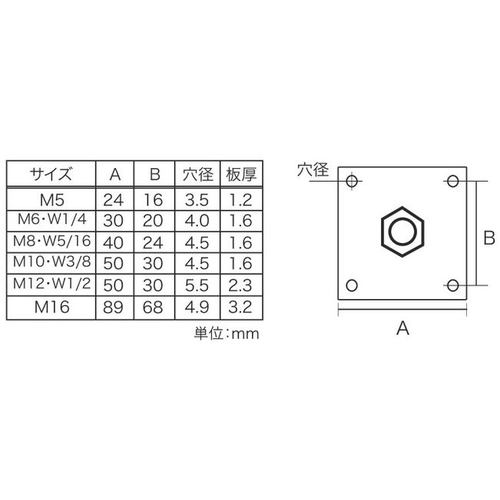

Catalog number: YHI-ITNT-W3/8 Features: *Adjustment nut with plate and nut welded together. Applications: *Use in combination with an adjuster bolt to adjust the height of wooden fences, etc. Specifications: *Nominal diameter: W3/8 *Two-sided width dimension (mm): 17 *Thread pitch (mm): 1.3368 *Dowel presence: None *Surface treatment: Trivalent chromate Plate thickness (mm): 1.6 *Nut height (mm): 8 Material/Finish: *Steel
