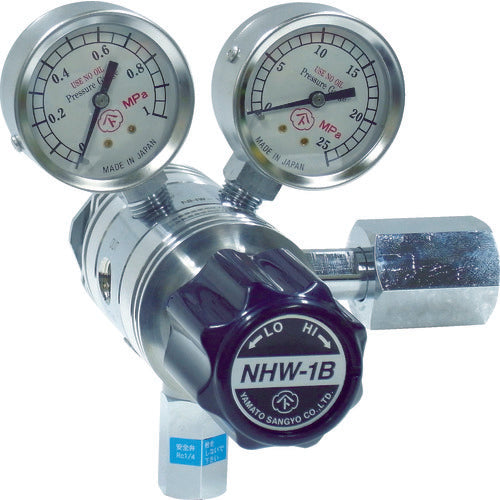

YAMATO Gas Regulator Two-Stage Pressure Regulator with Fins for Analytical Instruments NHW-1B Methane NHW1BTRCCH4 1 pc

Catalog number: NHW1BTRCCH4 Features: ●Very little pressure fluctuation, ideal for high purity gas. ●Fins with anti-freeze function. Applications: ●For temperature drop gas analyzers, research Specifications: ●Fluid: Methane ●Inlet connection: W22-14 (left) ●Outlet connection: Rc1/4 ●Standard flow rate (L/min): 10 ●Primary side operating pressure: 2 to 15 MPa ●Secondary side operating pressure: 0.1 to 0.6 MPa Materials/Finish: ●Body: Brass Caution: ●Gas purity: Dew point below -50°C, use for 1 hour of continuous use.
