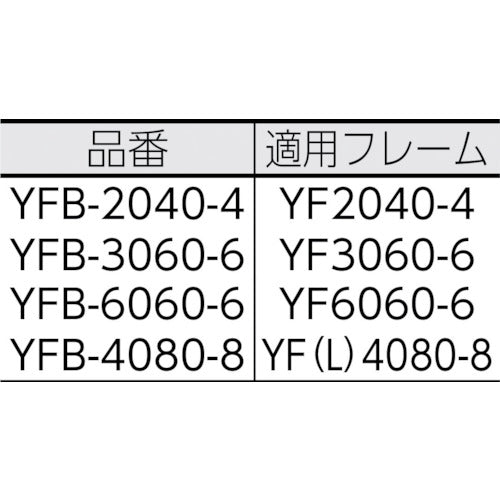

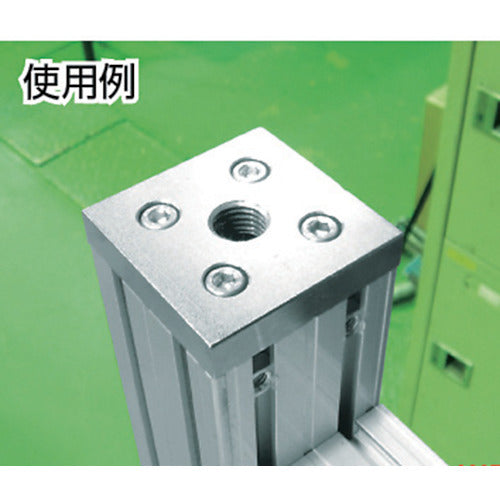

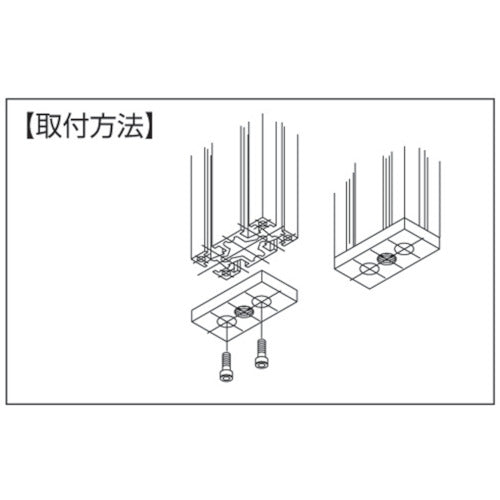

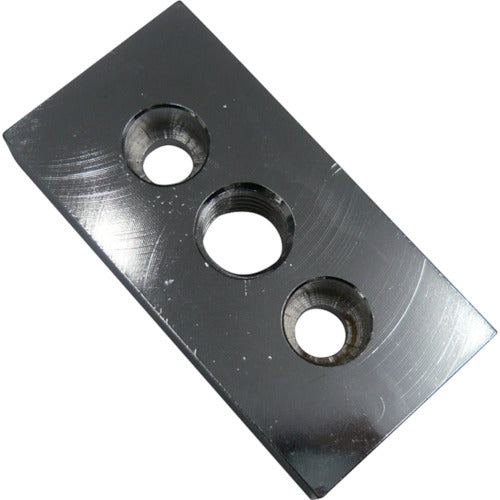

Catalog number: YFB-4080-8 Features: ● Same size (width and depth) as the aluminum frame. ● Attach by tapping the aluminum frame. ● Can be attached with the same width and depth as the aluminum frame. Uses: ● Attached to the bottom of an aluminum stand. Specifications: ● Width (mm): 40 ● Depth (mm): 80 ● Height (mm): 12 ● Type: M8 ● Applicable frame: YF(L)4080-8 Material/Finish: ● General structural steel ● Surface treatment: Nickel plating Note: ● Customers must provide their own mounting cap bolts.
