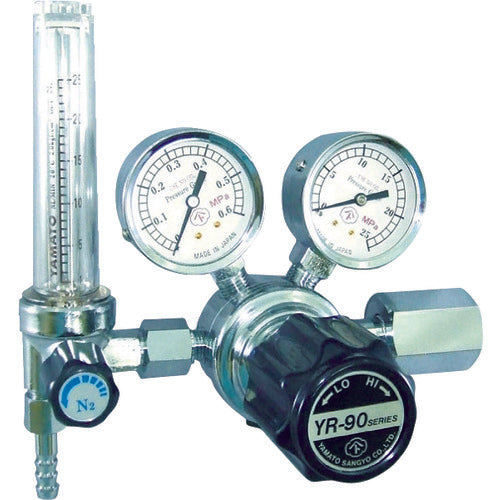

YAMATO General-purpose compact pressure regulator YR-90F (with flow meter) YR-90F-R-12FS-30-H2-2205 1 unit

Catalog number: YR-90F-R-12FS-30-H2-2205 Features: ●A small regulator that can provide a stable supply of gas due to its small pressure fluctuations. ●Comes with an outlet float-type flowmeter (25L). Applications: ●For analysis and research, industrial use. Specifications: ●Fluid: Hydrogen ●Inlet connection: W22-14 (left) ●Outlet connection: φ8 hose port ●Standard flow rate (L/min): 30 ●Applicable gas ●Primary side operating pressure: 2 to 15 MPa ●Secondary side operating pressure: 0.2 to 0.37 MPa Material/Finish: ●Body: Brass
