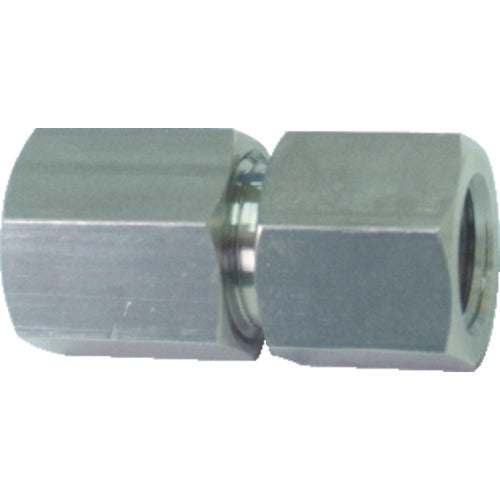

YAMATO High Pressure Fitting (Female x Female Cap Nut Type) TS164 TS164 1 pc

Catalog number: TS164 Use: ● For high pressure gas piping. Specifications: ● Connection size: M16 x 1.5 (left) x Rc1/4 ● L (mm): 37 ● Fluid used: Nitrogen, oxygen, argon, air, etc. ● Design temperature (℃): -10 to 75 ● Use: Gas fitting ● Compatible fluids: N2, O2, Ar, Air, CO2, He, H2 ● Screw size A: M16 x 1.5 (left) ● Screw size B: Rc1/4 ● Total length L: 37 ● Inner diameter d: 6 ● Material: Stainless steel ● Maximum operating pressure: 0.99MPa ● Oil and water free treatment completed Material/Finish: ● Body: Stainless steel Set contents/Accessories: ● None
