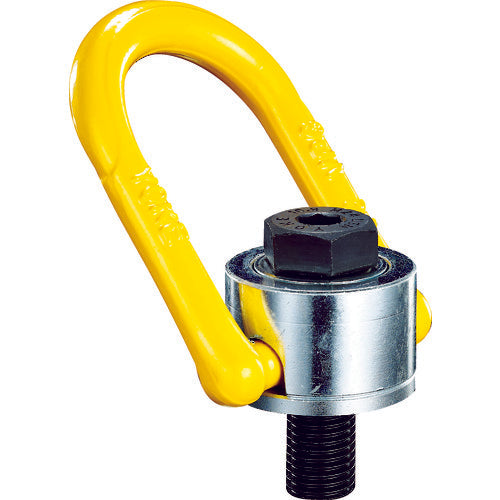

YOKE Anchor Point M10 0.96t 8-231-007 1 piece

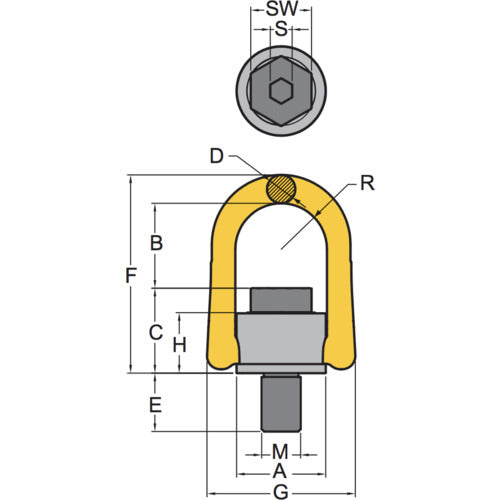

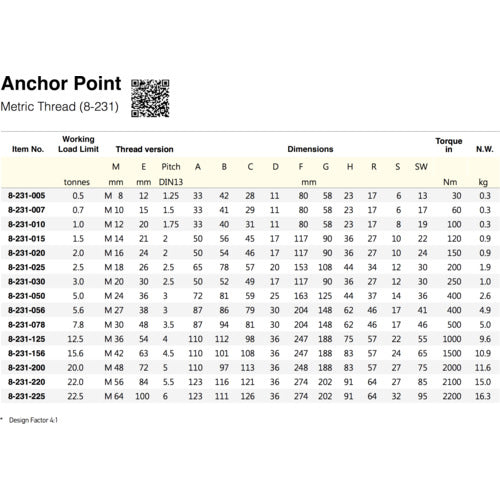

Catalog number: 8-231-007 Features: *The ring portion can move 180° relative to the mounting surface and rotate 360° in the axial direction. *Allows horizontal hanging and lifting operations that were impossible with JIS type eye bolts. Applications: *For moving and inverting large molds. *For moving and installing large concrete products. *For moving, transporting and installing heavy components, machinery, etc. Specifications: ●Basic load capacity (t): Vertical suspension: 0.96 / 90° horizontal suspension: 0.56 ●Bolt size: M10 ●Dimension (mm) A: 33 ●Dimension (mm) B: 41 ●Dimension (mm) C: 29 ●Dimension (mm) D: 11 ●Dimension (mm) E: 15 ●Dimension (mm) F: 80 ●Dimension (mm) G: 58 ●Dimension (mm) H: 23 ●Breaking load (kN): 33 ●Thread diameter: M10 ●Complies with EN1677-1, ASME B30.26 ●Tightening torque (N・m): 60 ●Complies with REACH regulations Material/Finish: ●Alloy steel Caution: ●Install the bolts in accordance with the tightening torque indicated.
