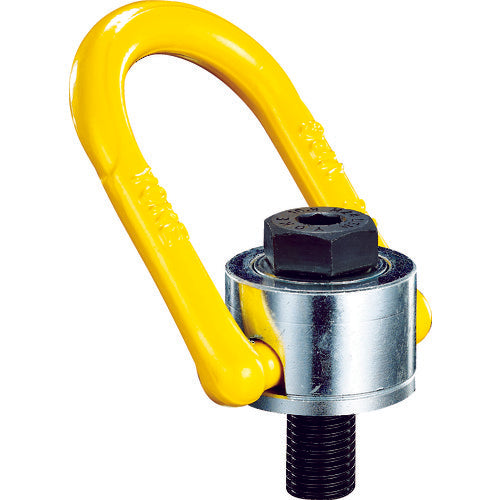

YOKE Anchor Point M20 4.48t 8-231-030 1 piece

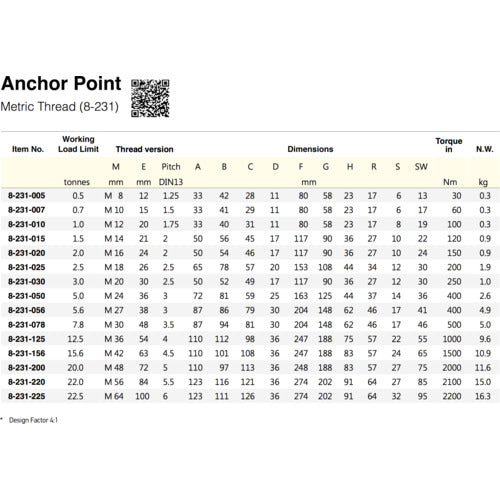

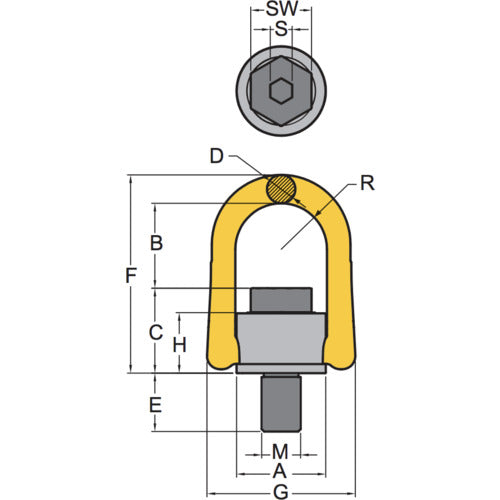

Catalog number: 8-231-030 Features: *The ring portion can move 180° relative to the mounting surface and rotate 360° in the axial direction. *Allows horizontal hanging and lifting operations that were impossible with JIS type eye bolts. Applications: *For moving and inverting large molds. *For moving and installing large concrete products. *For moving, transporting and installing heavy components, machinery, etc. Specifications: ●Basic load capacity (t): Vertical suspension: 4.48 / 90° horizontal suspension: 2.4 ●Bolt size: M20 ●Dimension (mm) A: 50 ●Dimension (mm) B: 52 ●Dimension (mm) C: 49 ●Dimension (mm) D: 17 ●Dimension (mm) E: 30 ●Dimension (mm) F: 117 ●Dimension (mm) G: 90 ●Dimension (mm) H: 36 ●Thread diameter: M20 ●Breaking load (kN): 50 ●Complies with EN1677-1, ASME B30.26 ●Tightening torque (N・m): 250 ●Complies with REACH regulations Caution: ●Please install the bolts in accordance with the tightening torque indicated.
