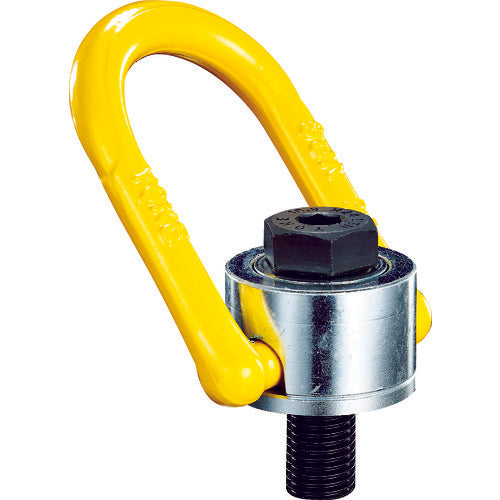

YOKE Anchor Point M24 7.36t 8-231-050 1 piece

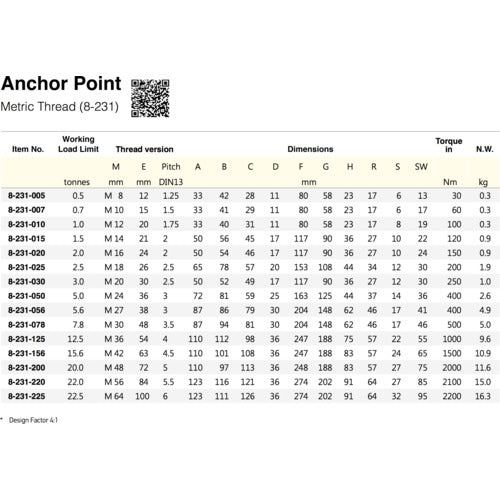

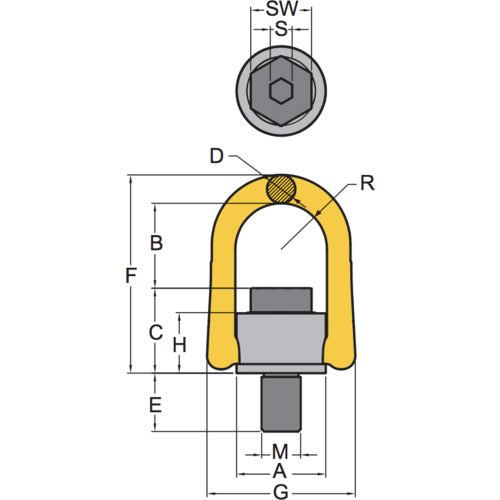

Catalog number: 8-231-050 Features: *The ring portion can move 180° relative to the mounting surface and rotate 360° in the axial direction. *Allows horizontal hanging and lifting operations that were impossible with JIS type eye bolts. Applications: *For moving and inverting large molds. *For moving and installing large concrete products. *For moving, transporting and installing heavy components, machinery, etc. Specifications: ●Basic load capacity (t): Vertical suspension: 7.36 / 90° horizontal suspension: 4 ●Bolt size: M24 ●Dimension (mm) A: 72 ●Dimension (mm) B: 81 ●Dimension (mm) C: 59 ●Dimension (mm) D: 25 ●Dimension (mm) E: 36 ●Dimension (mm) F: 163 ●Dimension (mm) G: 125 ●Dimension (mm) H: 44 ●Thread diameter: M24 ●Breaking load (kN): 72 ●Complies with EN1677-1, ASME B30.26 ●Tightening torque (N・m): 400 ●Complies with REACH regulations Caution: ●Please install the bolts in accordance with the tightening torque indicated.
