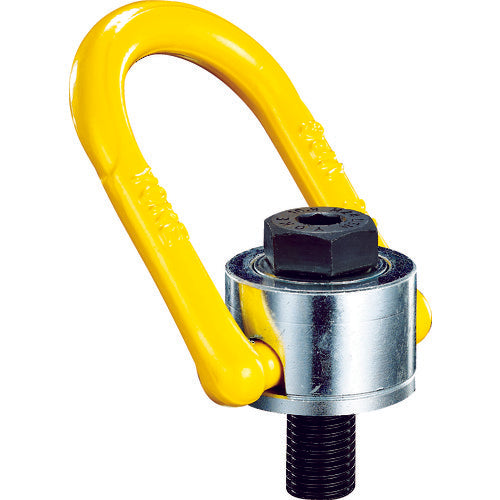

YOKE Anchor Point M27 8t 8-231-056 1 piece

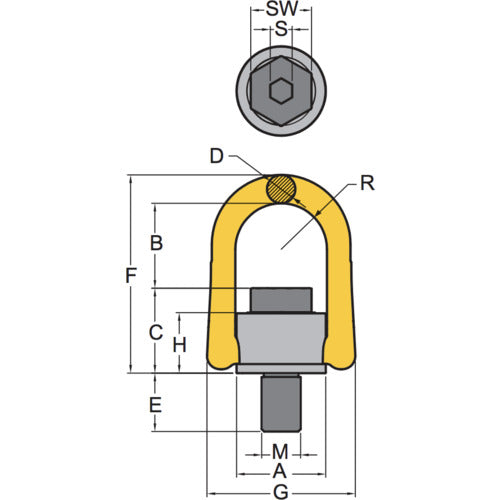

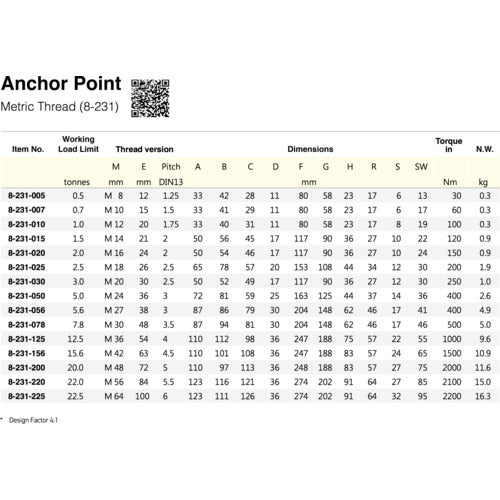

Catalog number: 8-231-056 Features: *The ring portion can move 180° relative to the mounting surface and rotate 360° in the axial direction. *Allows horizontal hanging and lifting operations that were impossible with JIS type eye bolts. Applications: *For moving and inverting large molds. *For moving and installing large concrete products. *For moving, transporting and installing heavy components, machinery, etc. Specifications: ●Basic load capacity (t): Vertical suspension: 8 / 90° horizontal suspension: 4.48 ●Bolt size: M27 ●Dimension (mm) A: 87 ●Dimension (mm) B: 86 ●Dimension (mm) C: 79 ●Dimension (mm) D: 30 ●Dimension (mm) E: 38 ●Dimension (mm) F: 204 ●Dimension (mm) G: 148 ●Dimension (mm) H: 62 ●Breaking load (kN): 87 ●Thread diameter: M27 ●Complies with EN1677-1, ASME B30.26 ●Tightening torque (N・m): 400 ●Complies with REACH regulations Caution: ●Please install the bolts in accordance with the tightening torque indicated.
