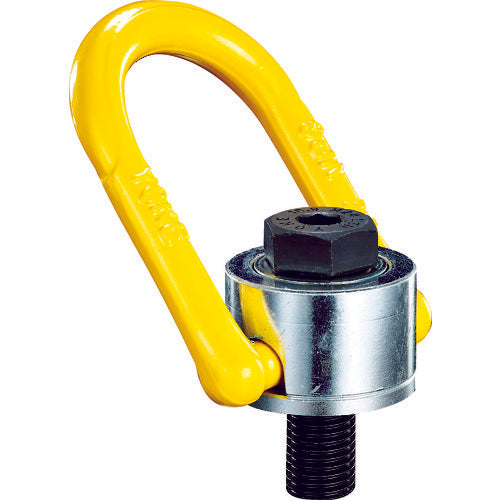

YOKE Anchor Point M36 11.2t 8-231-125 1 piece

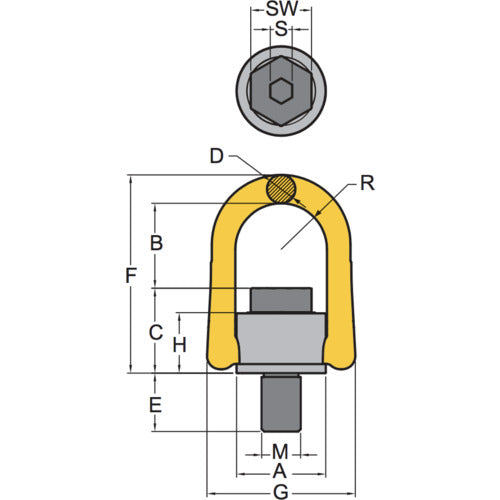

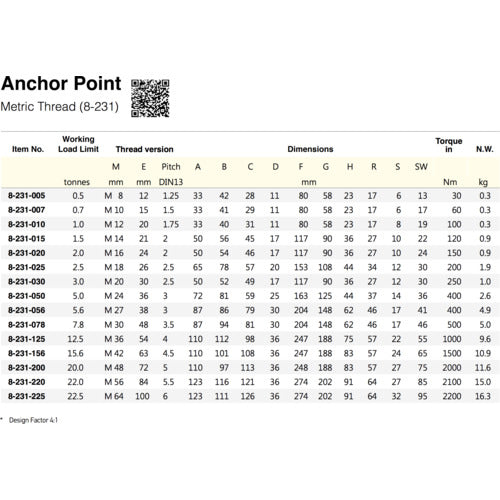

Catalog number: 8-231-125 Features: *The ring portion can move 180° relative to the mounting surface and rotate 360° in the axial direction. *Allows horizontal hanging and lifting operations that were impossible with JIS-type eye bolts. Applications: *For moving and inverting large molds. *For moving and installing large concrete products. *For moving, transporting and installing heavy components, machinery, etc. Specifications: ●Basic load capacity (t): Vertical suspension: 11.2 / 90° horizontal suspension: 10 ●Bolt size: M36 ●Dimension (mm) A: 110 ●Dimension (mm) B: 112 ●Dimension (mm) C: 98 ●Dimension (mm) D: 36 ●Dimension (mm) E: 54 ●Dimension (mm) F: 247 ●Dimension (mm) G: 188 ●Dimension (mm) H: 75 ●Thread diameter: M36 ●Breaking load (kN): 110 ●Complies with EN1677-1, ASME B30.26 ●Tightening torque (N・m): 1000 ●Complies with REACH regulations Caution: ●Please install the bolts in accordance with the tightening torque indicated.
