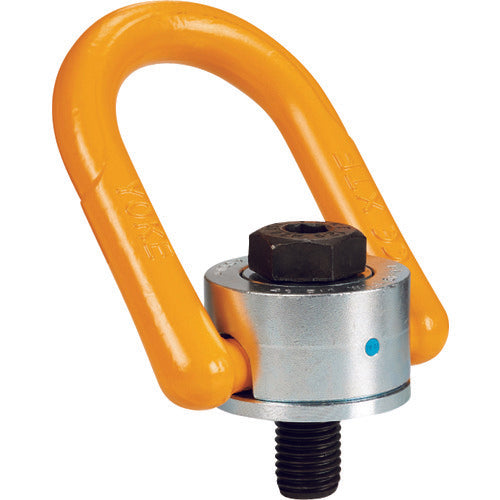

YOKE Anchor Point M56 17.6t 8-231-220 1 pc

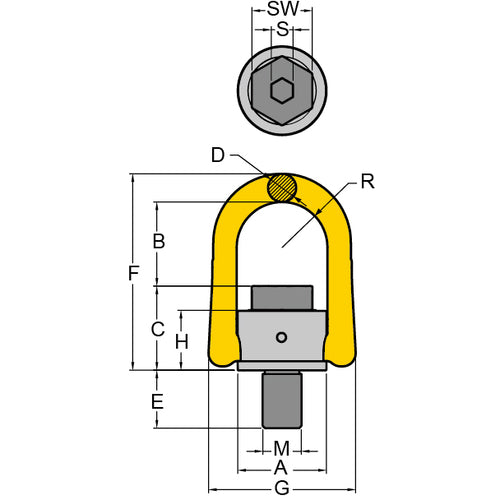

Catalog number: 8-231-220 Features: *The ring portion can move 180° relative to the mounting surface and rotate 360° in the axial direction. *Allows horizontal hanging and lifting operations that were impossible with JIS-type eye bolts. Applications: *For moving and inverting large molds. *For moving and installing large concrete products. *For moving, transporting and installing heavy components, machinery, etc. Specifications: ●Basic load capacity (t): Vertical suspension: 17.6 / 90° horizontal suspension: 17.6 ●Bolt size: M 56 ●Dimension (mm) A: 123 ●Dimension (mm) B: 116 ●Dimension (mm) C: 121 ●Dimension (mm) D: 36 ●Dimension (mm) E: 84 ●Dimension (mm) F: 274 ●Dimension (mm) G: 202 ●Dimension (mm) M: M 56 ●Complies with EN1677-1, ASME B30.26 ●Complies with REACH regulations Caution: ●Please install the bolts in accordance with the tightening torque indicated.
