YOKE Keyed Eye Point M10 0.8t 8-291K-004 1pc

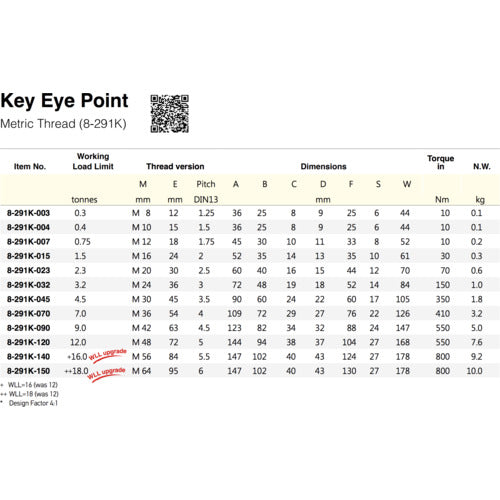

Catalog number: 8-291K-004 Features: ●Rotates 360° in the axial direction. ●Allows horizontal lifting and pulling up, which was not possible with JIS type eye bolts. Applications: ●For moving and inverting large molds. ●For moving and installing large concrete products. ●For moving, transporting and installing heavy materials, machinery, etc. Specifications: ●Basic load capacity (t): Vertical suspension: 0.8 / 90° horizontal suspension: 0.32 ●Bolt size: M10 ●Dimension (mm) A: 36 ●Dimension (mm) B: 25 ●Dimension (mm) C: 8 ●Dimension (mm) D: 9 ●Dimension (mm) E: 15 ●Dimension (mm) F: 25 ●Dimension (mm) W: 44 ●Thread diameter: M10 ●Breaking load (kN): 36 ●Complies with EN1677-1, ASME B30.26 ●Tightening torque (N・m): 10 ●Complies with REACH regulations Material/Finish: ●Alloy steel Caution: ●Install the bolts in accordance with the tightening torque indicated.
