YOKE Keyed Eye Point M24 6.4t 8-291K-032 1pc

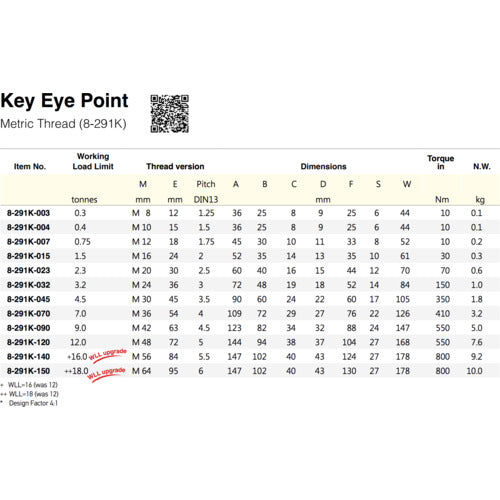

Catalog number: 8-291K-032 Features: ●Rotates 360° in the axial direction. ●Allows horizontal lifting and pulling up, which was not possible with JIS type eye bolts. Applications: ●For moving and inverting large molds. ●For moving and installing large concrete products. ●For moving, transporting and installing heavy materials, machinery, etc. Specifications: ●Basic load capacity (t): Vertical suspension: 6.4 / 90° horizontal suspension: 2.56 ●Bolt size: M24 ●Dimension (mm) A: 72 ●Dimension (mm) B: 48 ●Dimension (mm) C: 19 ●Dimension (mm) D: 18 ●Dimension (mm) E: 36 ●Dimension (mm) F: 52 ●Dimension (mm) W: 84 ●Thread diameter: M24 ●Breaking load (kN): 72 ●Complies with EN1677-1, ASME B30.26 ●Tightening torque (N・m): 150 ●Complies with REACH regulations Material/Finish: ●Alloy steel Caution: ●Install the bolts in accordance with the tightening torque indicated.
