YOKE Keyed Eye Point M42 19.2t 8-291K-090 1pc

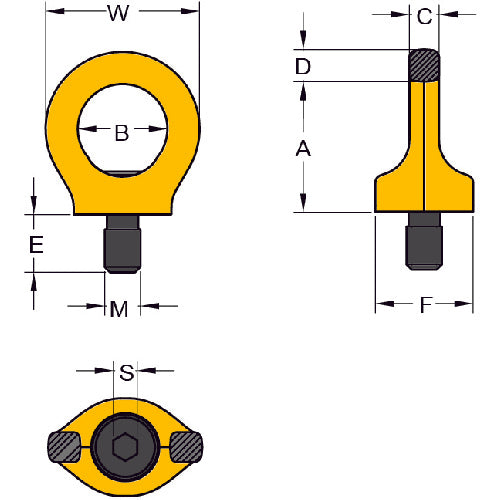

Catalog number: 8-291K-090 Features: ●Rotates 360° in the axial direction. ●Allows horizontal lifting and pulling up, which was not possible with JIS type eye bolts. Applications: ●For moving and inverting large molds. ●For moving and installing large concrete products. ●For moving, transporting and installing heavy materials, machinery, etc. Specifications: ●Basic load capacity (t): Vertical suspension: 19.2 / 90° horizontal suspension: 7.2 ●Bolt size: M42 ●Dimension (mm) A: 123 ●Dimension (mm) B: 82 ●Dimension (mm) C: 34 ●Dimension (mm) D: 32 ●Dimension (mm) E: 63 ●Dimension (mm) F: 88 ●Dimension (mm) W: 147 ●Breaking load (kN): 123 ●Thread diameter: M42 ●Complies with EN1677-1, ASME B30.26 ●Tightening torque (N・m): 550 ●Complies with REACH regulations Material/Finish: ●Alloy steel Caution: ●Install the bolts in accordance with the tightening torque indicated.
