YOKE Keyed Eye Point M48 25.6t 8-291K-120 1pc

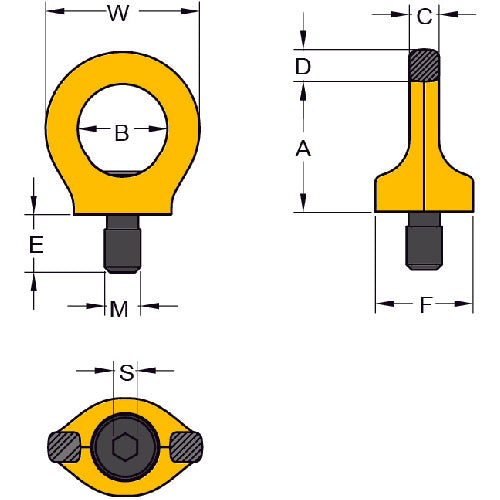

Catalog number: 8-291K-120 Features: ●Rotates 360° in the axial direction. ●Allows horizontal lifting and pulling up, which was not possible with JIS type eye bolts. Applications: ●For moving and inverting large molds. ●For moving and installing large concrete products. ●For moving, transporting and installing heavy materials, machinery, etc. Specifications: ●Basic load capacity (t): Vertical suspension: 25.6 / 90° horizontal suspension: 9.6 ●Bolt size: M48 ●Dimension (mm) A: 144 ●Dimension (mm) B: 94 ●Dimension (mm) C: 38 ●Dimension (mm) D: 37 ●Dimension (mm) E: 72 ●Dimension (mm) F: 104 ●Dimension (mm) W: 168 ●Thread diameter: M48 ●Breaking load (kN): 144 ●Complies with EN1677-1, ASME B30.26 ●Tightening torque (N・m): 550 ●Complies with REACH regulations Material/Finish: ●Alloy steel Caution: ●Install the bolts in accordance with the tightening torque indicated.
