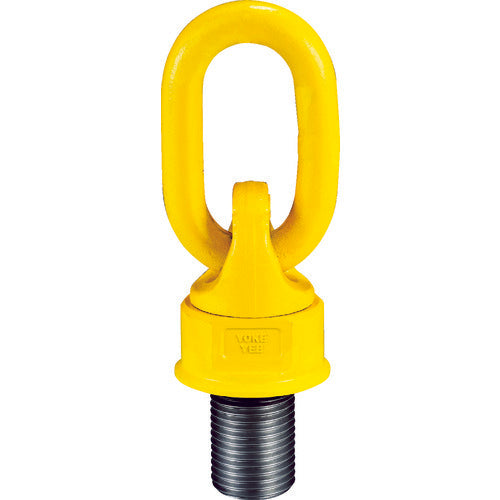

YOKE Swivel Point M10 0.72t 8-271-004 1 piece

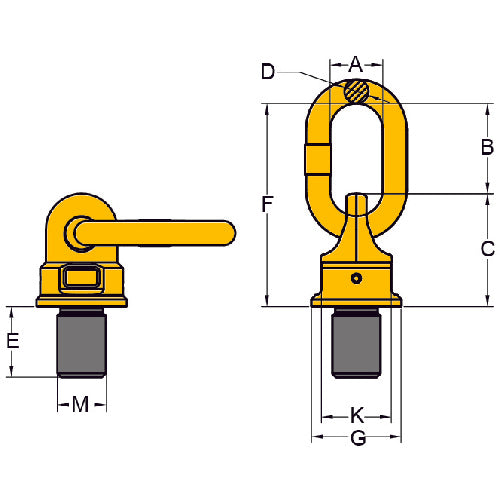

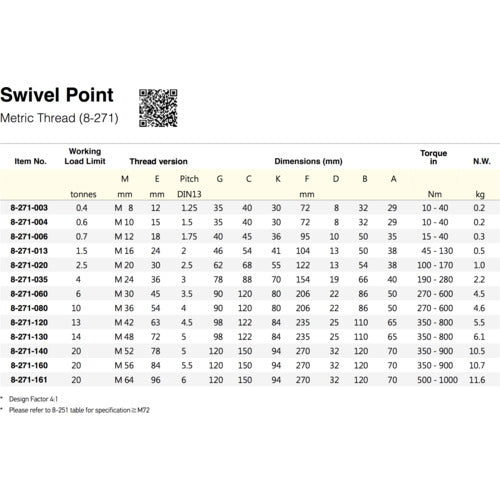

Catalog number: 8-271-004 Features: ●Built-in ball bearings ensure smooth movement. ●The ring portion can move 180° relative to the mounting surface and rotate 360° in the axial direction. ●Allows horizontal lifting and pulling up operations, which were impossible with JIS-type eye bolts. Applications: ●For moving and inverting large molds. ●For moving and installing large concrete products. ●For moving, transporting and installing heavy components and machinery. Specifications: ●Basic load capacity (t): Vertical suspension: 0.72 / 90° horizontal suspension: 0.48 ●Bolt size: M10 ●Dimension (mm) A: 29 ●Dimension (mm) B: 32 ●Dimension (mm) C: 40 ●Dimension (mm) D: 8 ●Dimension (mm) E: 15 ●Dimension (mm) F: 72 ●Dimension (mm) G: 35 ●Dimension (mm) K: 30 ●Breaking load (kN): 35 ●Thread diameter: M10 ●Complies with EN1677-1, ASME B30.26 ●DGUV GS-OA-15-04 certified ●Tightening torque (N・m): 10-40 ●Complies with REACH regulations Material/Finish: ●Alloy steel Caution: ●Install the bolts in accordance with the tightening torque indicated.
