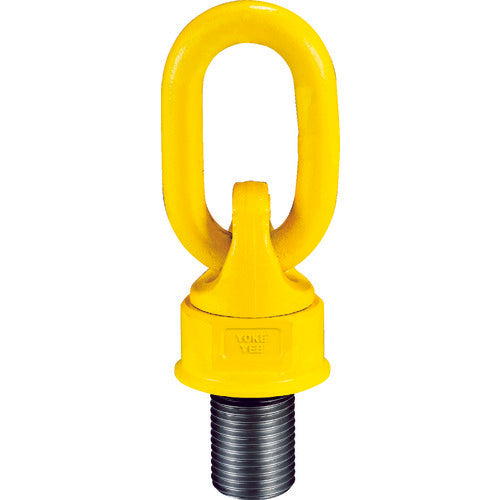

YOKE Swivel Point M20 3.2t 8-271-020 1pc

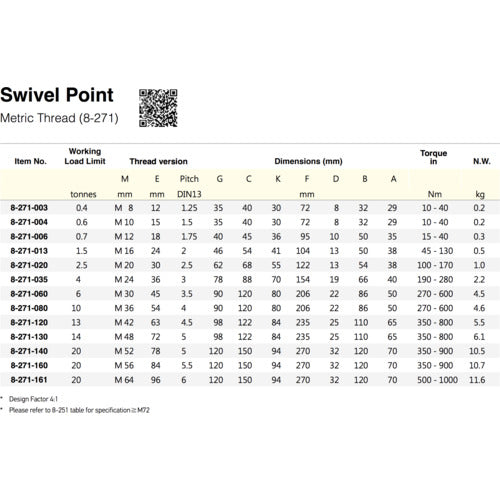

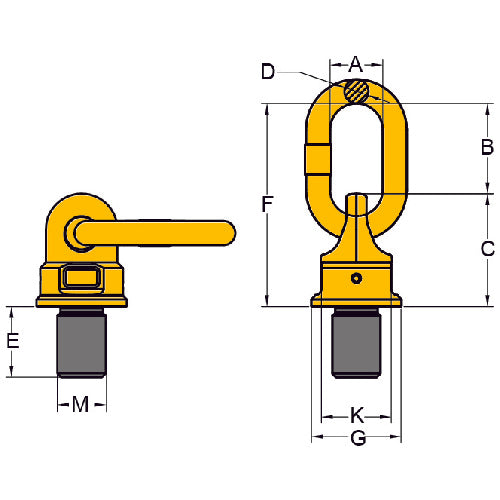

Catalogue number: 8-271-020 Features: ●Built-in ball bearings ensure smooth movement. ●The ring portion can move 180° relative to the mounting surface and rotate 360° in the axial direction. ●Allows horizontal lifting and pulling up operations, which were impossible with JIS-type eye bolts. Applications: ●For moving and inverting large molds. ●For moving and installing large concrete products. ●For moving, transporting and installing heavy components and machinery. Specifications: ●Basic load capacity (t): Vertical suspension: 3.2 / 90° horizontal suspension: 2 ●Bolt size: M20 ●Dimension (mm) A: 38 ●Dimension (mm) B: 54 ●Dimension (mm) C: 68 ●Dimension (mm) D: 13 ●Dimension (mm) E: 30 ●Dimension (mm) F: 122 ●Dimension (mm) G: 62 ●Dimension (mm) K: 55 ●Thread diameter: M20 ●Breaking load (kN): 62 ●Complies with EN1677-1, ASME B30.26 ●DGUV GS-OA-15-04 certified ●Tightening torque (N・m): 100-170 ●Complies with REACH regulations Material/Finish: ●Alloy steel Caution: ●Install the bolts in accordance with the tightening torque indicated.
