YOKE Swivel Point M24 5.6t 8-271-035 1pc

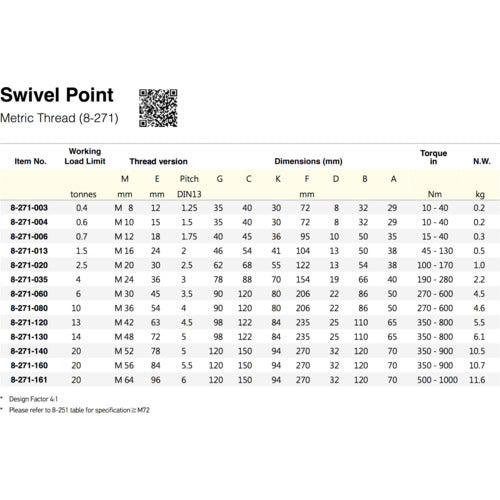

Catalog number: 8-271-035 Features: ●Built-in ball bearings ensure smooth movement. ●The ring portion can move 180° relative to the mounting surface and rotate 360° in the axial direction. ●Allows horizontal lifting and pulling up operations, which were impossible with JIS-type eye bolts. Applications: ●For moving and inverting large molds. ●For moving and installing large concrete products. ●For moving, transporting and installing heavy components and machinery. Specifications: ●Basic load capacity (t): Vertical suspension: 5.6 / 90° horizontal suspension: 3.2 ●Bolt size: M24 ●Dimension (mm) A: 40 ●Dimension (mm) B: 66 ●Dimension (mm) C: 88 ●Dimension (mm) D: 19 ●Dimension (mm) E: 36 ●Dimension (mm) F: 154 ●Dimension (mm) G: 78 ●Dimension (mm) K: 70 ●Breaking load (kN): 78 ●Thread diameter: M24 ●Complies with EN1677-1, ASME B30.26 ●DGUV GS-OA-15-04 certified ●Tightening torque (N・m): 190-280 ●Complies with REACH regulations Material/Finish: ●Alloy steel Caution: ●Install the bolts in accordance with the tightening torque indicated.
