YOKE Swivel Point M30 8t 8-271-060 1 piece

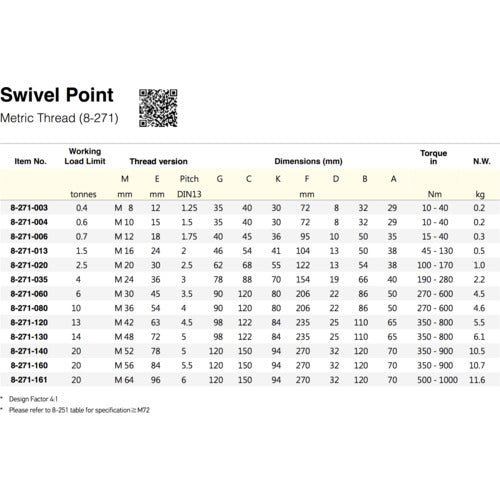

Catalog number: 8-271-060 Features: ●Built-in ball bearings ensure smooth movement. ●The ring portion can move 180° relative to the mounting surface and rotate 360° in the axial direction. ●Allows horizontal lifting and pulling up operations, which were impossible with JIS-type eye bolts. Applications: ●For moving and inverting large molds. ●For moving and installing large concrete products. ●For moving, transporting and installing heavy components and machinery. Specifications: ●Basic load capacity (t): Vertical suspension: 8 / 90° horizontal suspension: 4.8 ●Bolt size: M30 ●Dimension (mm) A: 50 ●Dimension (mm) B: 86 ●Dimension (mm) C: 120 ●Dimension (mm) D: 22 ●Dimension (mm) E: 46 ●Dimension (mm) F: 206 ●Dimension (mm) G: 90 ●Dimension (mm) K: 80 ●Breaking load (kN): 90 ●Thread diameter: M30 ●Complies with EN1677-1, ASME B30.26 ●DGUV GS-OA-15-04 certified ●Tightening torque (N・m): 270-600 ●Complies with REACH regulations Caution: ●Please install the bolts in accordance with the tightening torque indicated.
